2X Digital Single Phase AC 40-300V 100A Din Rail 6 in 1 Voltmeter Ammeter Watt Kwh Frequency Meter 110V(External CT)

6 in 1 Electricity Usage Monitor<br>This single phase energy meter can measure AC voltage, AC current, active power, power factor, frequence and electric energy at the same time. The power meter have a colorful, full-view, highdefinition LCD to display the measure parameters.<br>Main Function:<br>Electrical parameter measurement function<br>Data reset<br>Store data when power off<br>Colorful, full-view, high definition LCD screen<br>Backlight function<br>Specification: External CT<br>Color: As Shown<br>Material: ABS<br><br>Package Contents:<br>2 pcs x AC Monitor<br><br>Only the above package content, other products are not included.<br>Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

• When power off, the electric energy data be stored and memorized, when the power is reconnected, this watt meter go on cumulating data. Data reset for multiple measurement needs. Press the reset button for five seconds, the kwh usage meter be reseted.
• 6 Different Colour Display, 178° viewing without dead angle, with backlight function, this ac power meter single phase is clearly visible whatever day or night.

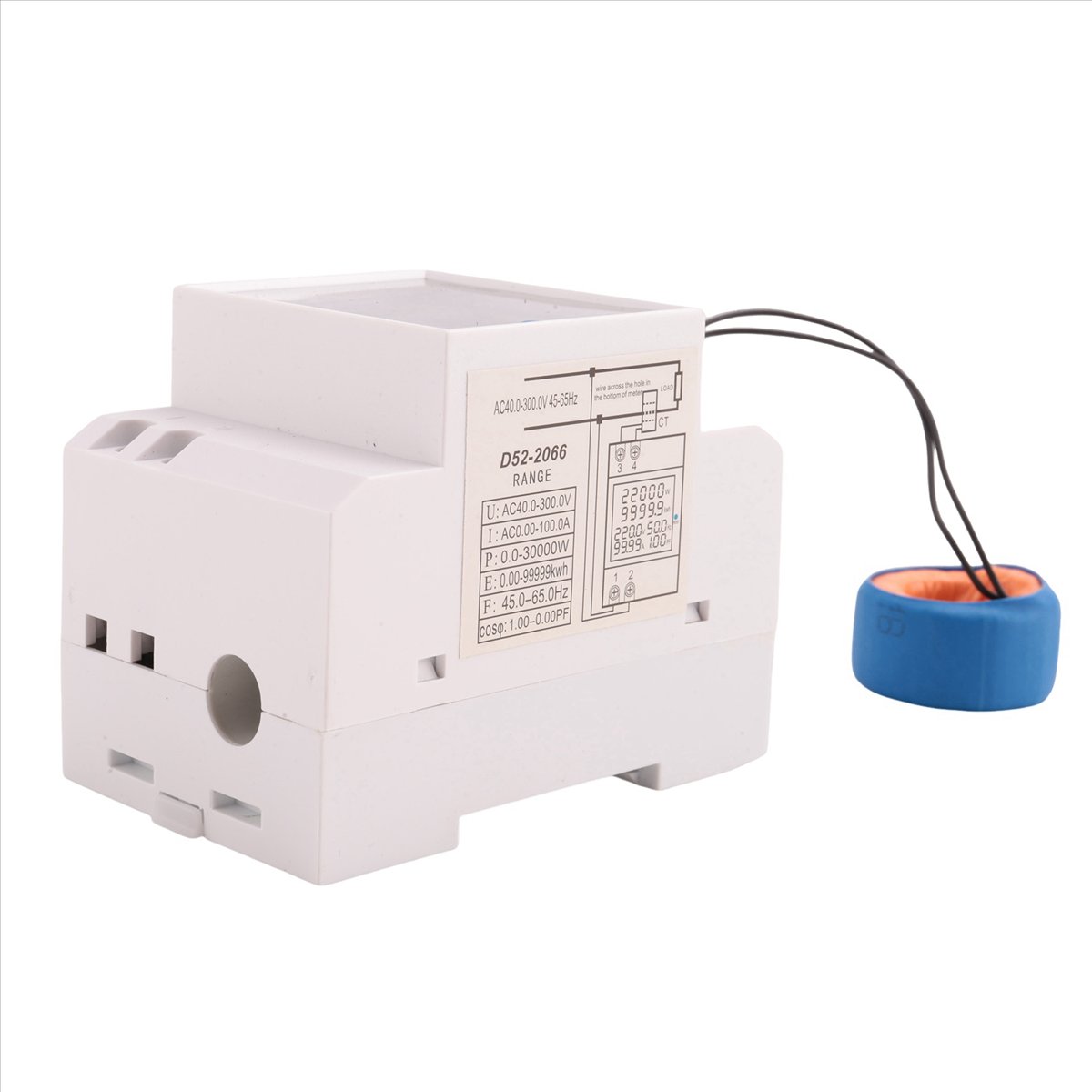

• 6 Parameters Display at the same time. Voltage Range: AC 40-300V, Current Range: 0-100A, Active Power: 0-30000W, Electric Energy: 0-99999kWh, Frequency: 45-65Hz, Power Factor: 0.00-1.00PF.
• This single phase power consumption meter features high quality ABS flame material and percision chip, making it safe to use. Real-time monitoring of household electricity consumption, helping you lower power consumption and save money.
• This 6 in 1 Electricity Usage Monitor is easy to install and can be used indoor or outdoor. it can be used in home, school, market, industry, laboratory, etc.Notes: This energy meter can be used to measure non-standard sine wave from inverter.
