42 57 Stepper Motor Drive Control Board Forward and Reverse Controller Limit Angle Pulse Speed Drive Module Programmable

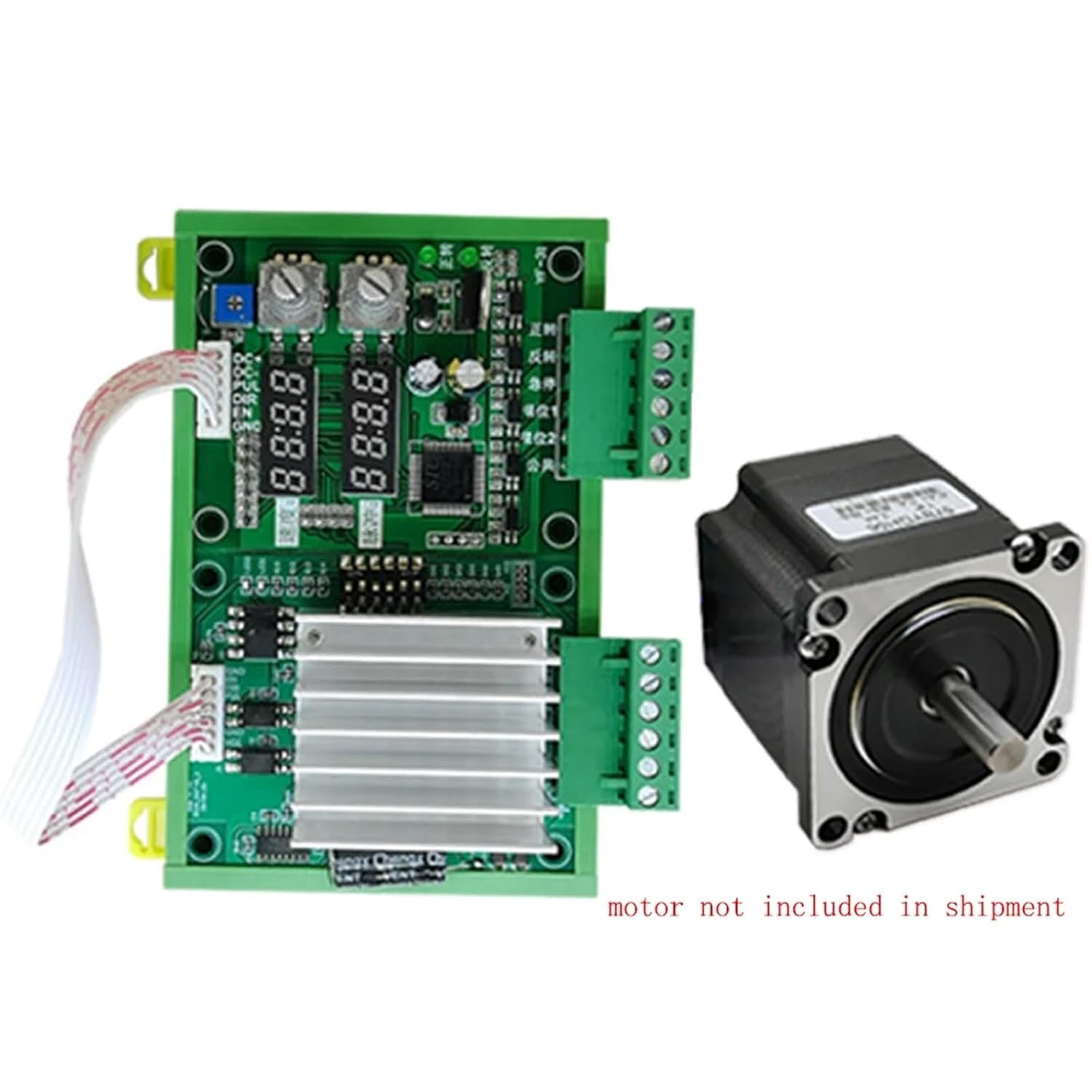

Speed Control42 57 Stepper Motor Drive Control Board Forward and Reverse Controller Limit Angle Pulse Speed Drive Module Programmable Specification:Product model: YF-31Voltage range: 10~30VCurrent range: within 4ADelay time: 0.1~999SHousing: special railProduct size: 128mm*81mm*38mmFunction introduction:P-1: point motion; Press and turn, touch the limit stop or release stop;P-2: Self-locking: press forward to keep forward; Press inversion to hold inversion; Keep loosening; Hit the limit stop.P--3: give forward signal; Stop X seconds after reaching limit 1; Automatic reverse to limit 2 stop.(Summary: to signal; Motor from A to B; Then automatically from point B to point A end; Limit control.)P-4: Power forward rotation; Stop X seconds after reaching limit 1; Automatic reversal to limit 2 after stopping X seconds; Automatic forward to...... Infinite cycle (summary: the motor cycles back and forth between two points A and B; Limit control.P--5: give forward signal; Turn forward X Angle stop; Give a reversal signal; Reverse X Angle stop;P-6: give forward signal; Turn forward X Angle stop; Delay T seconds; Auto reverse X Angle stop;General: motor from A to B point; Then automatically from point B to point A end; Pulse control.P-7: Power forward X Angle stop; Delay T seconds; Reverse X Angle stop; Delay T seconds; And turn X Angle stop; Infinite cycle.(Summary: Cycle back and forth between two points A and B; Pulse number control.)P--8: give forward signal; Turn forward X Angle stop; Delay T seconds; Turn forward X Angle stop; Infinite loop to reverse the signal; Reverse X Angle stop; Delay T seconds; Reverse X Angle stop; An infinite loop.(Summary: Turn in a single direction; Stop for a moment; Infinite loop.)Code potentiometer setting instructions:Time adjustment: Press No. 1 encoder to enter the reverse and reverse intermittent setting mode, and rotate No. 2 encoder to adjust the speed value.No.1 encoder: rotary potentiometer adjustable speed 0.1~999.9 RPM; Short press the encoder button; Can enter the function mode selection; Adjust the mode and stop operation for 2 seconds; Automatically exit Settings and save mode.No.2 encoder: The number of adjustable pulses of rotating potentiometer is 1~99990. Short press the encoder button to enter the decimal point adjustment; The decimal point indicates that the unit is 10; No decimal point means in units of 1; For example, display :1600 indicates that 1600 pulses are set, that is, one circle; 160.0 indicates that the set is 16,000 pulses or ten turns.Note:1.Due to the light and screen difference, the item's color may be slightly different from the pictures.2.Please allow 1-3cm differences due to manual measurement.Package includes:1x Stepper Motor Drive Control Board==========
