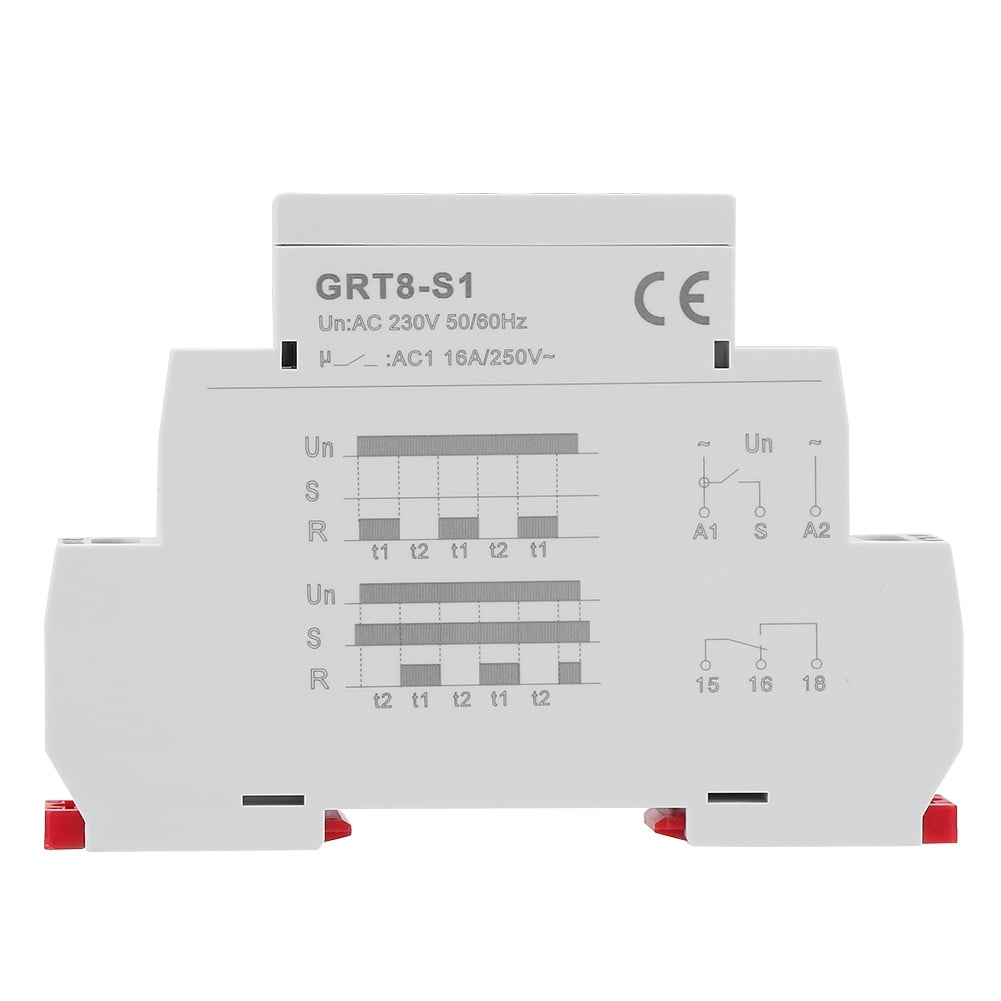

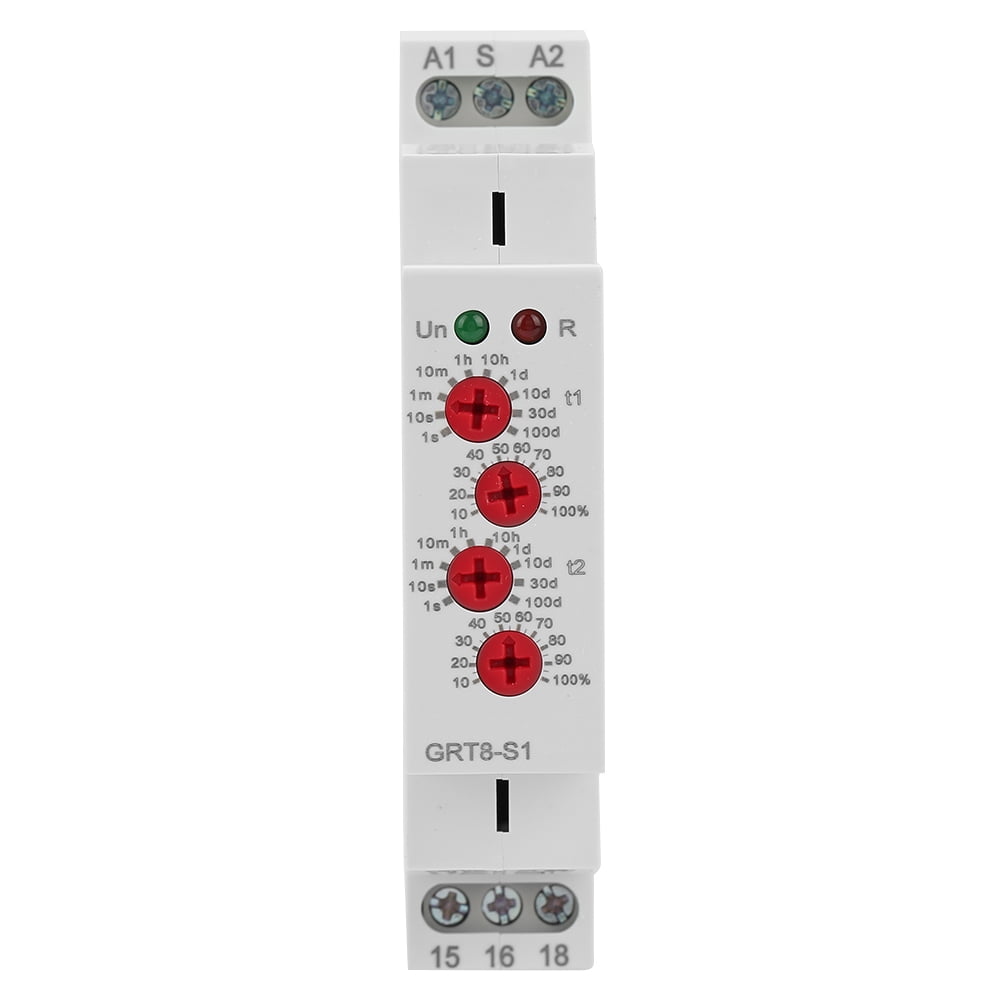

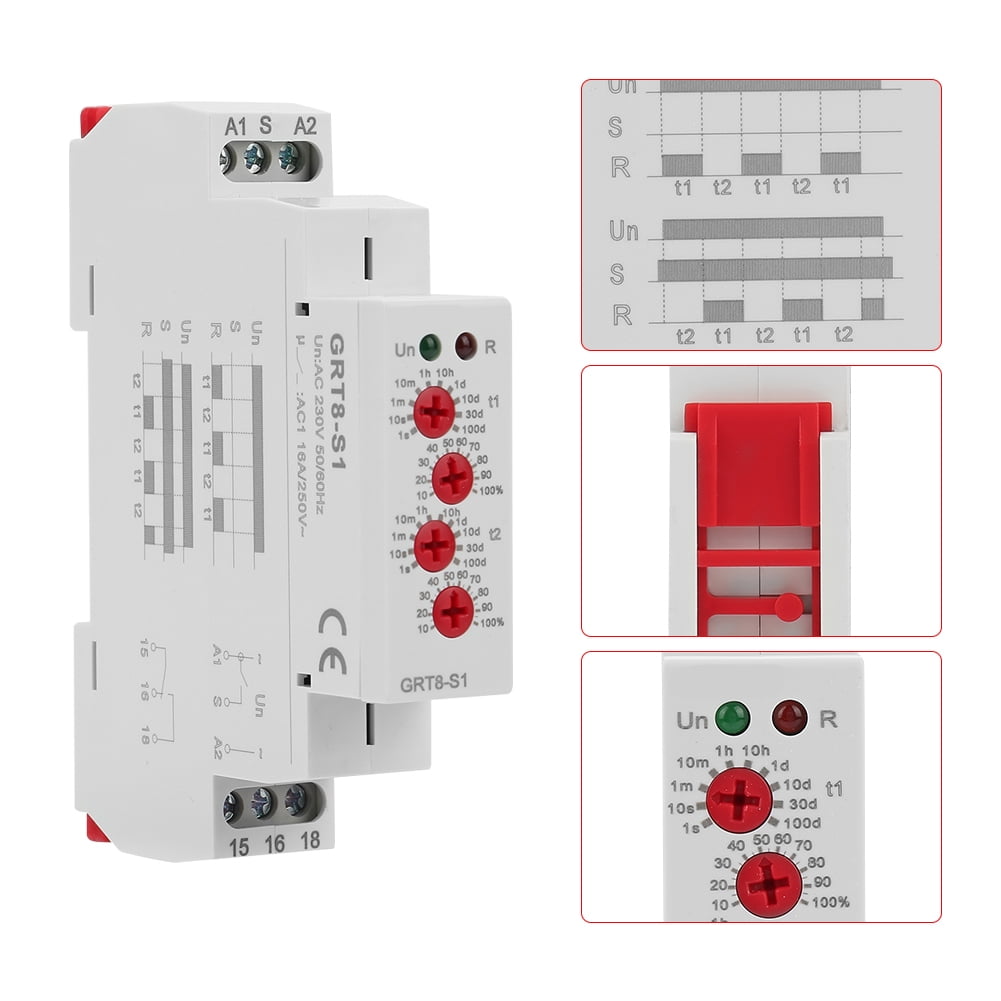

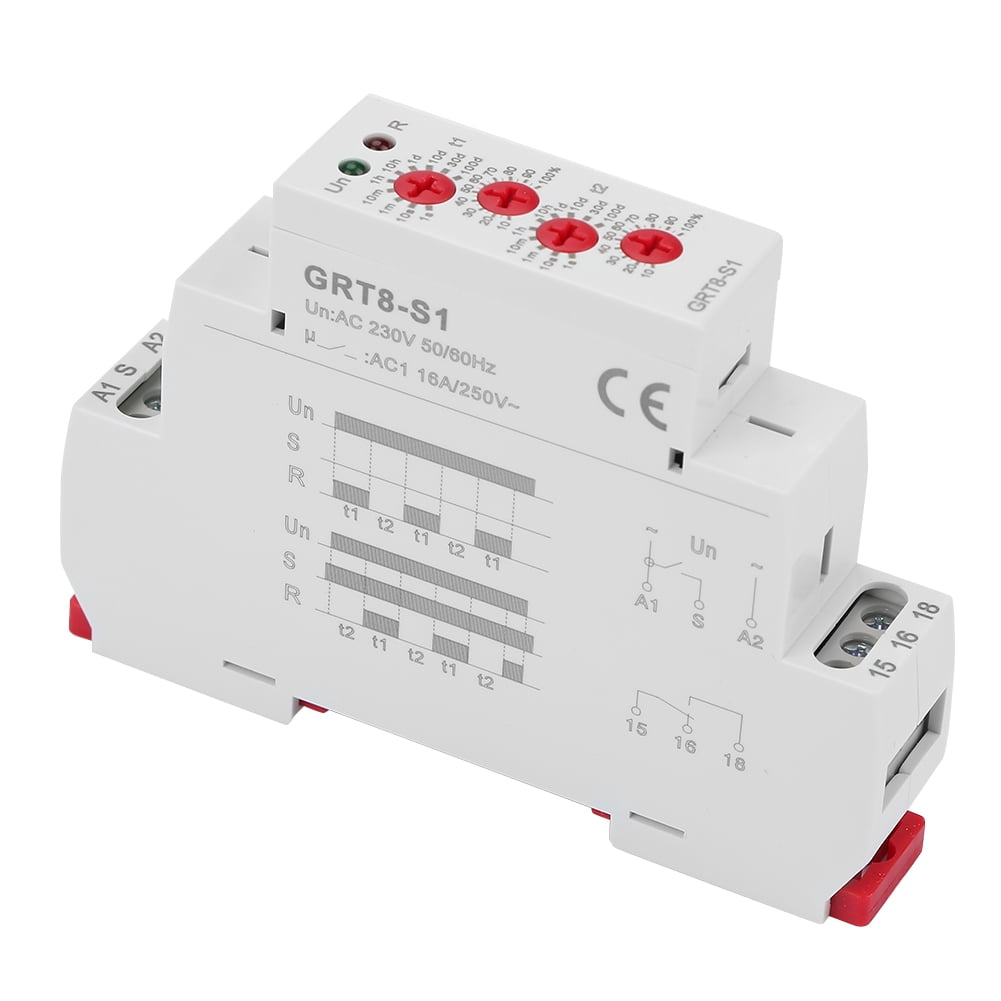

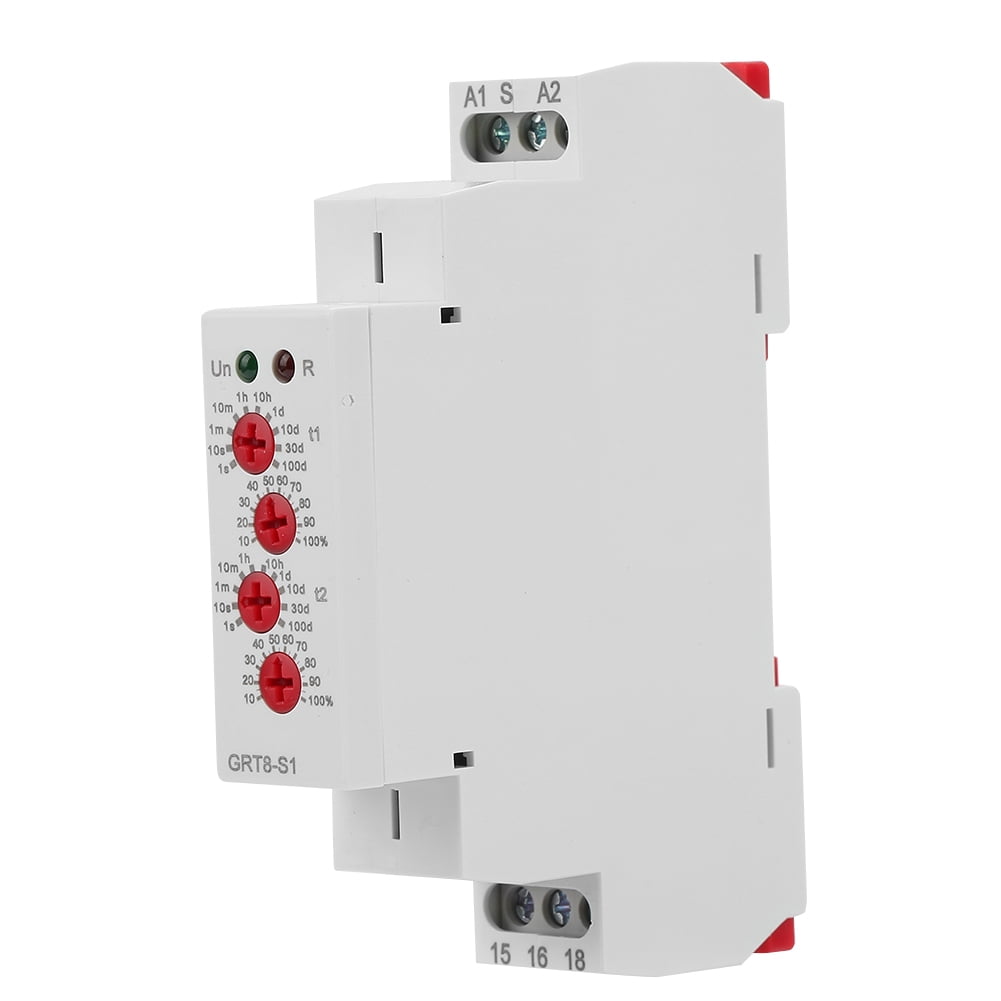

Cycle Timer Relay, GRT8-S1 35Mm Din Rail Knob AC 230V Cycle Time Relay, Ip20 Repeat Cycle Time Relay For Cycle Delay Control -20 Degrees Celsius ~55 Degrees Celsius

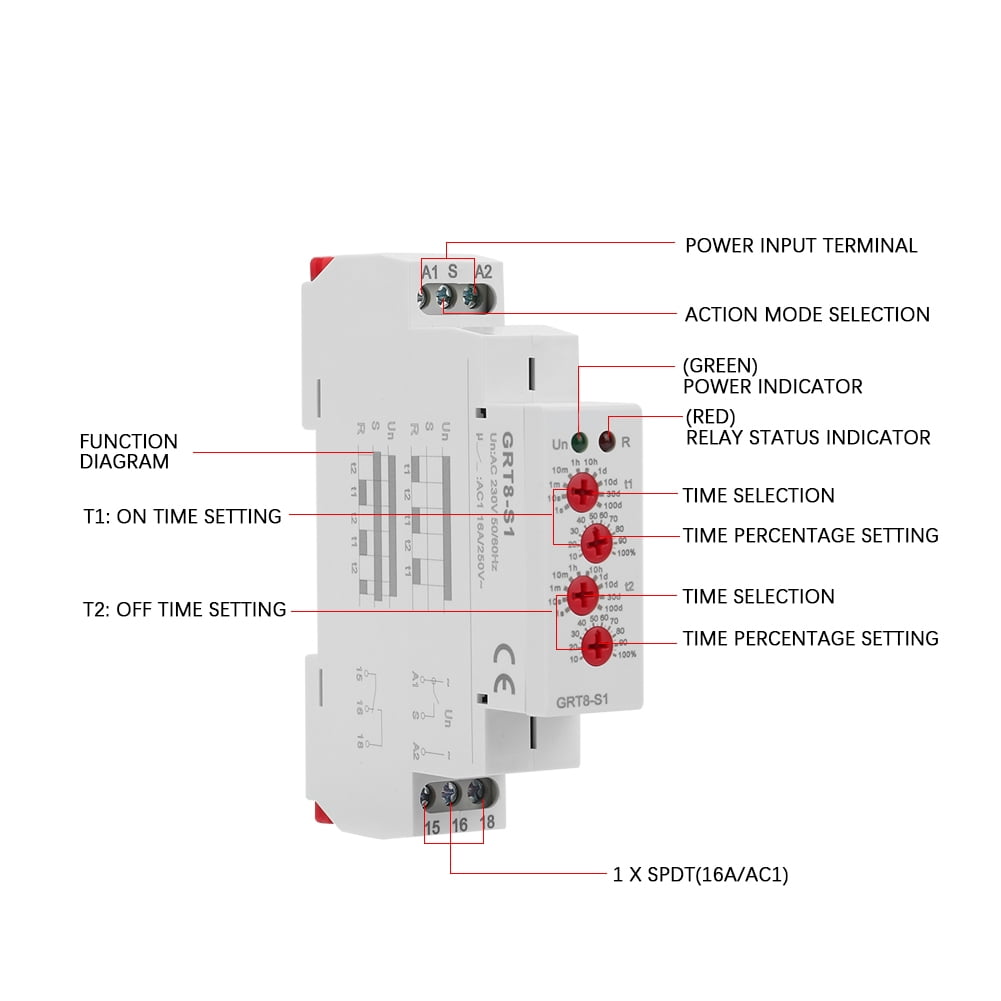

<b>Cycle Timer Relay, GRT8-S1 35Mm Din Rail Knob AC 230V Cycle Time Relay, Ip20 Repeat Cycle Time Relay for Cycle Delay Control -20 degrees Celsius ~55 degrees Celsius</b><br><b>Specification:</b><br> Features: 1. Time setting for delay ON and OFF is separated so you can set different delay time. 2. Super wide delay time range, 0.1 second - 100 days settable 10 selections. 3. Switch different working modes by short-circuiting S-A1. 4. Relay working status is indicated by LED indicators. 5. With small volume, this relay can be mounted on 35mm DIN rail. 6. It is for cycle delay control, providing periodic energizing, lighting control and heating control for electric circuit. Specification: Model: GRT8-S1 Rated supply voltage: AC 230V50-60Hz Power consumption: AC .6VA/1.3W Delay time range: 0.1s-100days, NO, NC Setting method: knob Setting accuracy: 10% Repeated accuracy: 0.2% Temperature fluctuation error: 0.05%/ degrees Celsius , at = 20 degrees Celsius Output contact: 1 x SPDT, 16A/AC1<br /> Minimum switching power: 500mW Power indicator: Green LED Output relay indication: Red LED Mechanical life: 1x107 Electrical life: 1x106 Reset time: 200ms Working temperature: -20 degrees Celsius ~55 degrees Celsius Storage temperature: -35 degrees Celsius ~75 degrees Celsius Mounting method: 35mm DIN rail Protection grade: IP20 Wiring capability: 1x2.5mm2 / 2x1.5mm2 : 90x18x64mm / 3.54x0.71x2.52in Package weight: Approx. 75g/2.6oz Package List: 1 x Cycle Timer Relay Note: 1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item. 2. Please allow slight error due to manual measurement. Thanks for your understanding. <br>

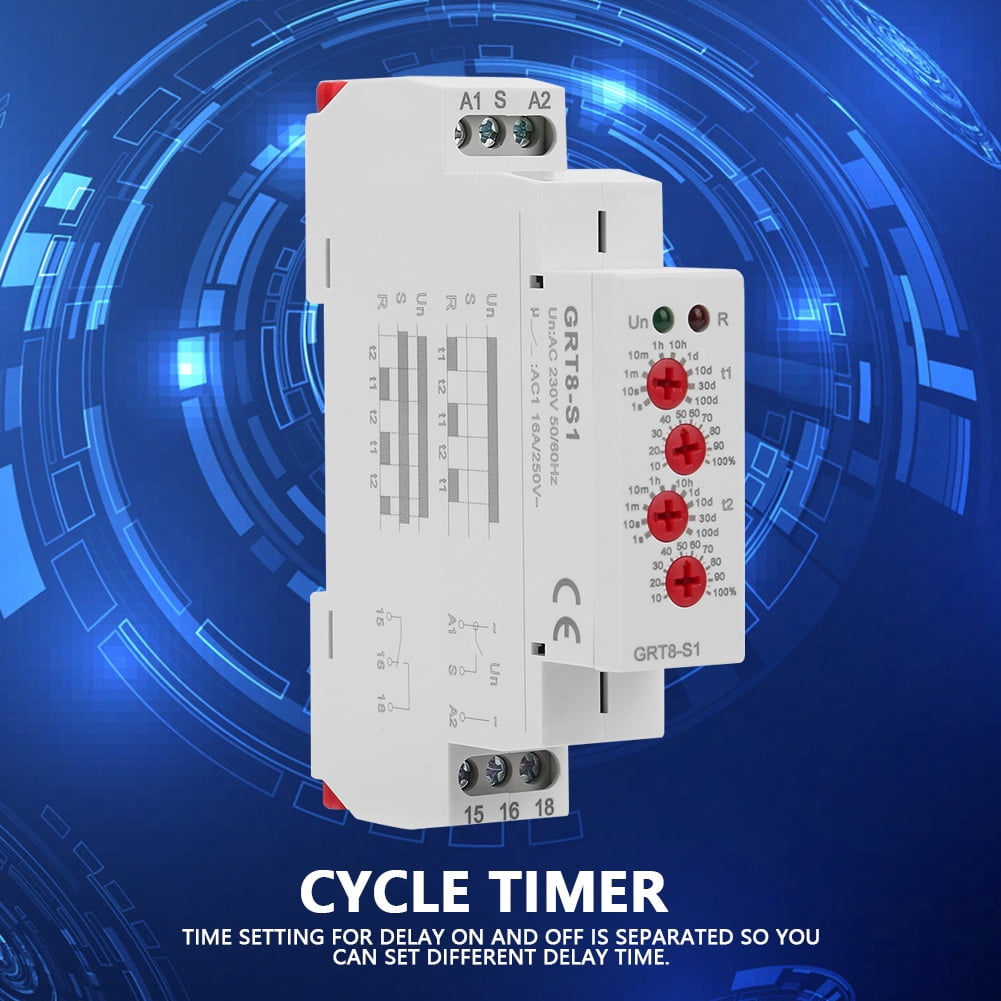

• Time setting for delay ON and OFF is separated so you can set different delay time.
• Super wide delay time range, 0.1 second - 100 days settable 10 selections.
• Switch different working modes by short-circuiting S-A1.
• Relay working status is indicated by LED indicators.
• With small volume, this relay can be mounted on 35mm DIN rail.
