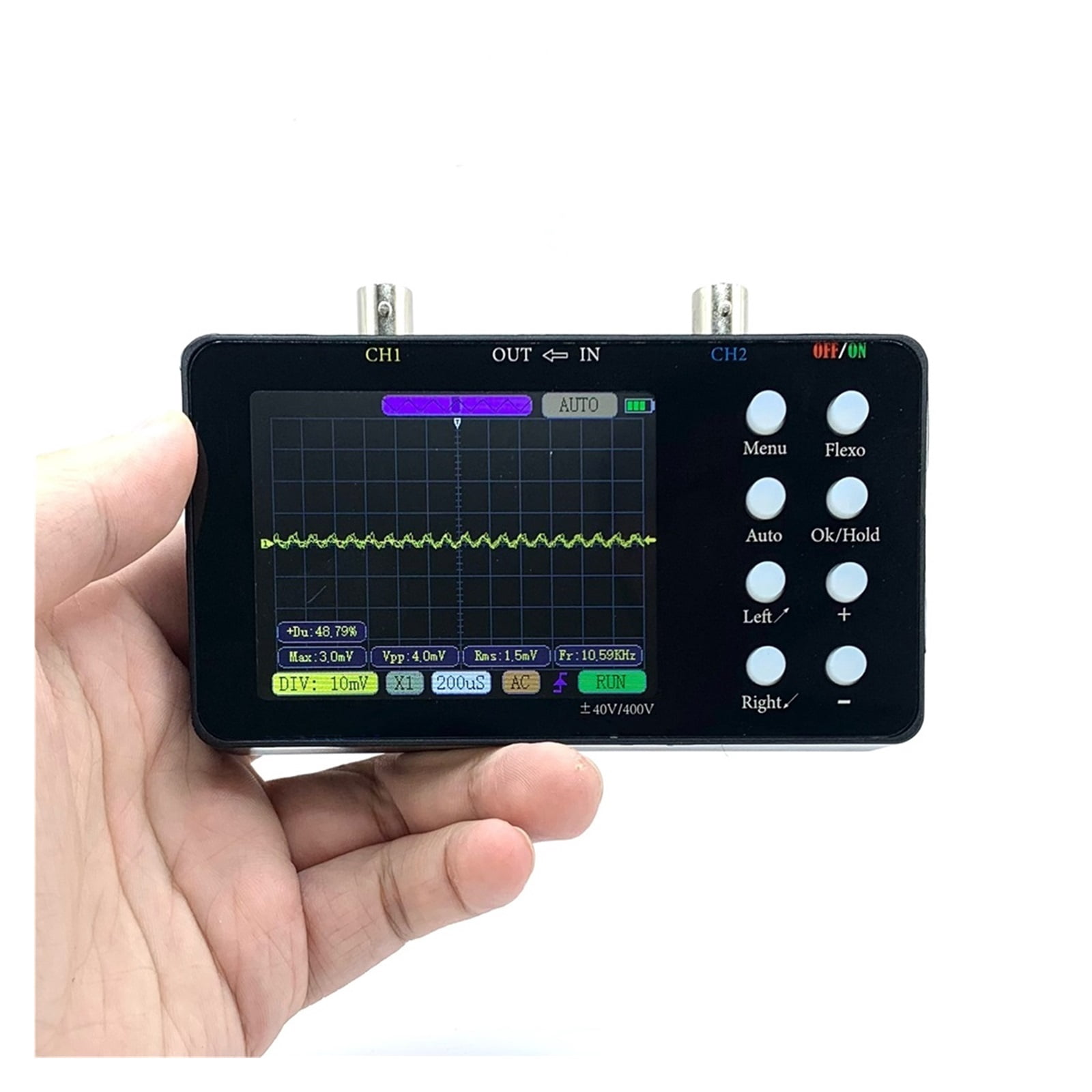

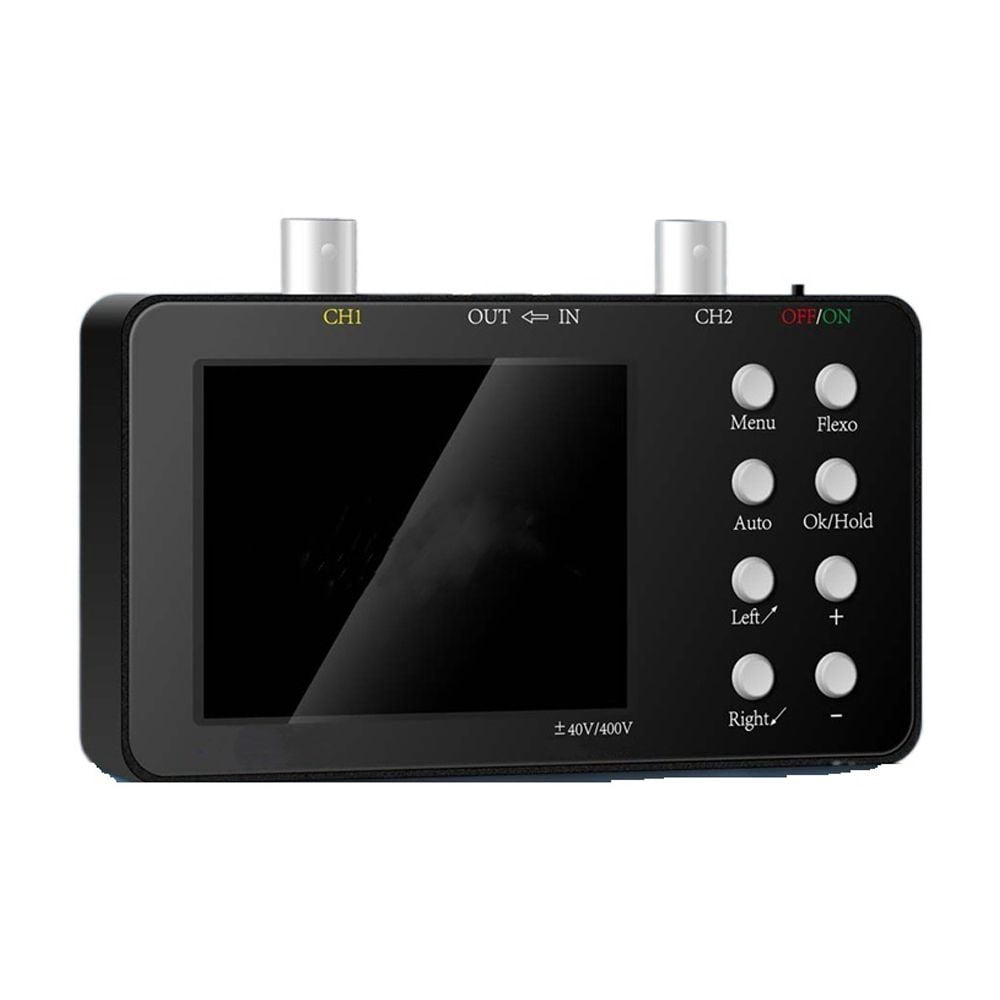

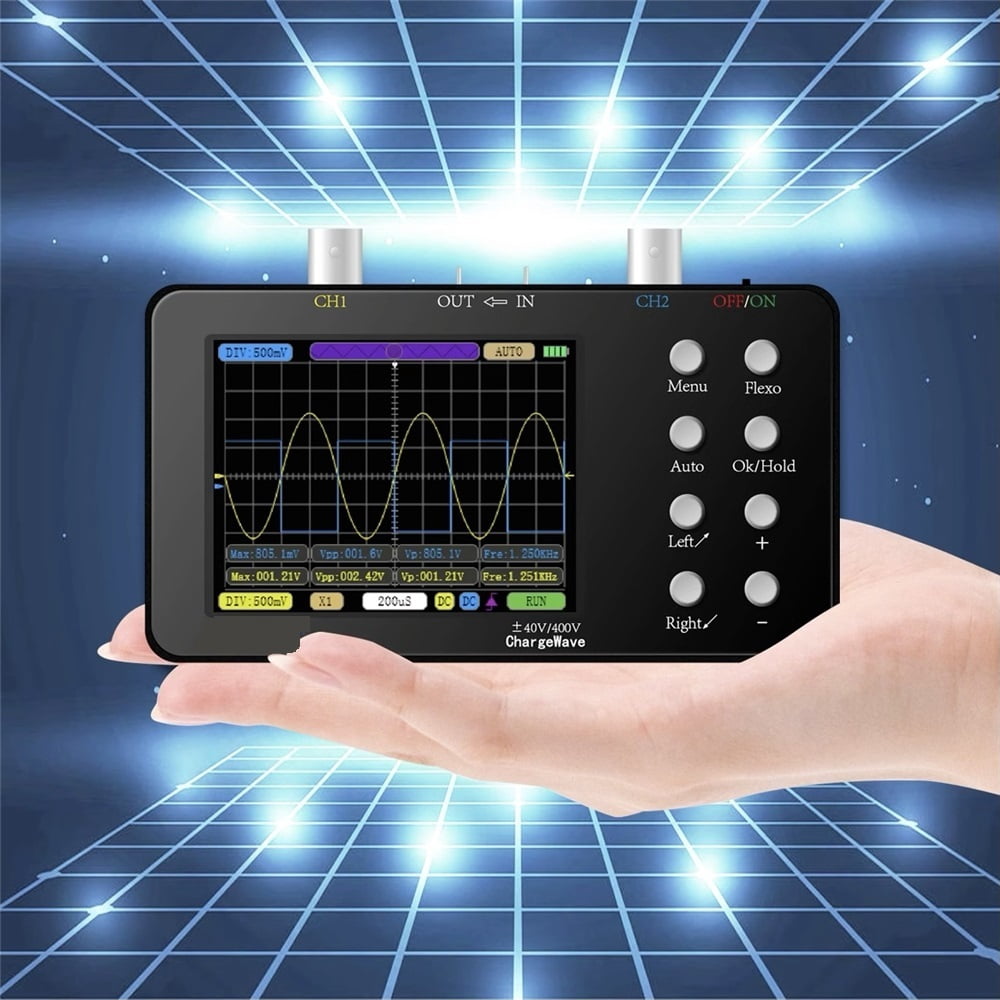

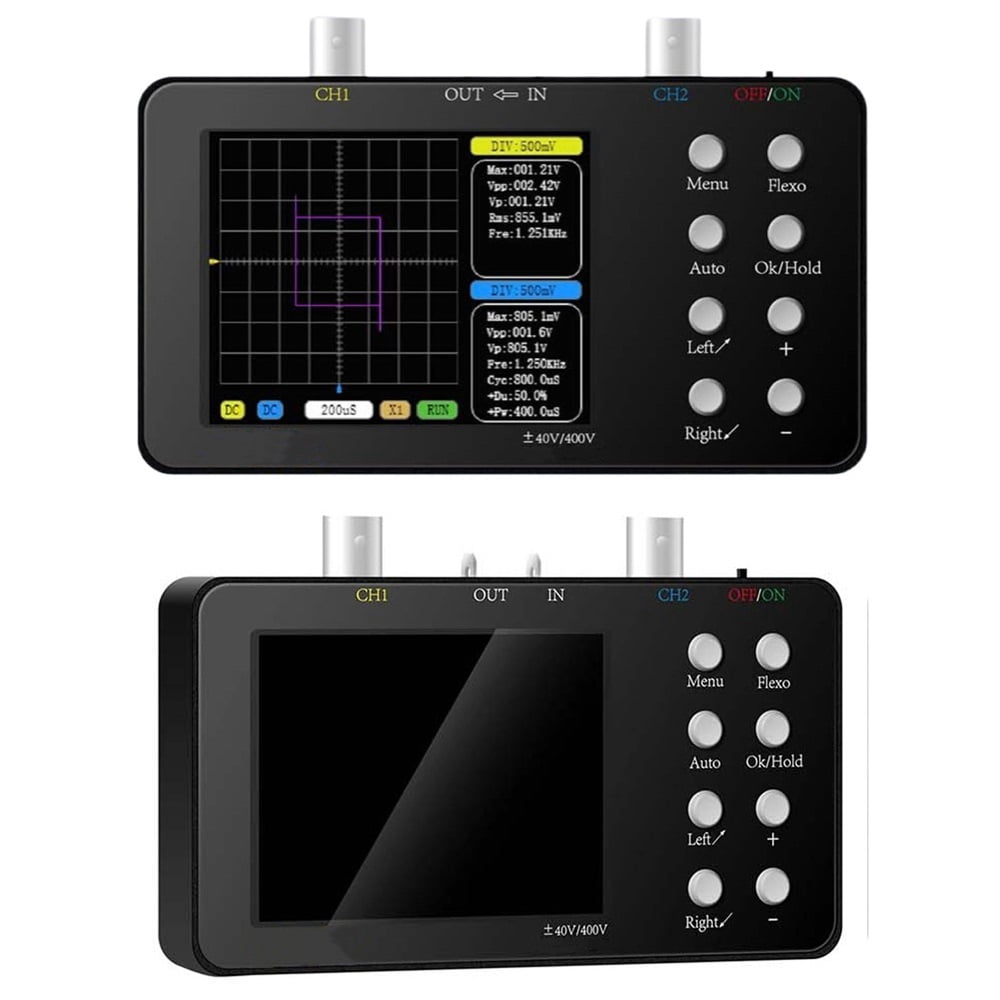

Dual Channel Digital Oscilloscope 50M Sampling Rate 10MSa/S Analog Bandwidth One Key AUTO Portable Digital Oscilloscope ,Professional Designed

<p>Features:</p><p>Support for high-pressure anti burning function</p><p>Support upper computer software. Users can update the system through software </p><p></p><p>Parameters:</p><p>Sampling rate: 50M/1CH</p><p>Number of channels: 2</p><p>Analog bandwidth: 10Mhz (1 CH)</p><p>Actual bandwidth: 2Mhz (1 CH)</p><p>Input impedance: 1M </p><p>Storage depth: 20KB</p><p>Parameter display: 12 types</p><p>Current measurement: 0-6A</p><p>Minimum accuracy: 2mA</p><p>Current sampling rate: 2.4KSa/s</p><p>Display: 3.2inch LCD, 320 * 240 resolution</p><p>Charging voltage: 5V</p><p>Battery capacity: 2500 mA</p><p>Continuous working hours: 4.5-6H</p><p>Shell size: 120mm * 66mm * 18.5mm</p><p>Applicable scope:Home appliance repair, mobile phone repair, car repair, electronic DIY, etc.</p><p>Related Products: </p><p>oscilloscope, </p><p>portable oscilloscope, </p><p>automotive oscilloscope, </p><p>oscilloscope automotive, </p><p>lab oscilloscopes, </p><p>osciloscopio, </p><p>osciloscopio automotriz, </p><p>handheld oscilloscope, </p><p>digital oscilloscope, </p><p>usb oscilloscope</p>

• 1. 50M sampling rate, actual bandwidth 2Mhz, analog bandwidth 10Mhz
• 2. Equipped with complete triggering function (single, normal, automatic), suitable for measuring periodic analog signals and non periodic digital signals
• 3. Supports one k AUTO function, which can display the measured waveform without complicated adjustments
• 4. 20K storage depth, supporting waveform compression and unfolding
• 5. The current waveform is infinitely compressed, with a maximum compression factor of 100 times. It can be compressed arbitrarily to view the curve of current changes
