FNIRSI-DSO 152 handheld small oscilloscope portable digital oscilloscope beginner teaching maintenance

FNIRSI-DSO 152 handheld small oscilloscope portable digital oscilloscope beginner teaching maintenance

• FNIRSI DSO152 Portable Digital Oscilloscope - 200kHz with P6100 Probe and Adapter
  Main Features:
  ✅Bandwidth: 200kHz
  ✅Sampling Rate: 2.5 MSa/s
  ✅Trigger Modes: Single, Normal, Auto
  ✅Display: 2.8" Color LCD (320x240)
  ✅Power Supply: Built-in Li-Ion 1000mAh Battery, Rechargeable via USB-C
  ✅Input: MCX for probe connection, Max Input Voltage 80Vpp (1:1), 800Vpp (1:10)
  ✅Additional Features: Auto Setup, Math Measurement, 1 kHz Calibration, Trigger Changes by Rising and Falling Edges
  ✅Compact Size: 99x68x20 mm, Weight Only 100g

• FNIRSI DSO152 is a compact, portable digital oscilloscope, perfect for the DIY who needs a precision tool to analyze analog and digital signals. The oscilloscope has a bandwidth of 200 kHz and a sampling rate of 2.5 MSa/s, providing excellent measurement accuracy. The device is equipped with a 2.8-inch color LCD display and a built-in lithium battery that provides up to 4 hours of operation on a single charge. Charging via a USB-C connector adds to the convenience of use.

• ✅Specifications:
  Model: DSO152
  Number of channels: 1
  Vertical sensitivity: 10mV/div - 20V/div,
  Step 1-2-5 Time base adjustment: 10us/div - 50s/div,
  Step 1-2-5 Connectors: MCX for probe, USB-C for charging Power supply: 5V/1A USB

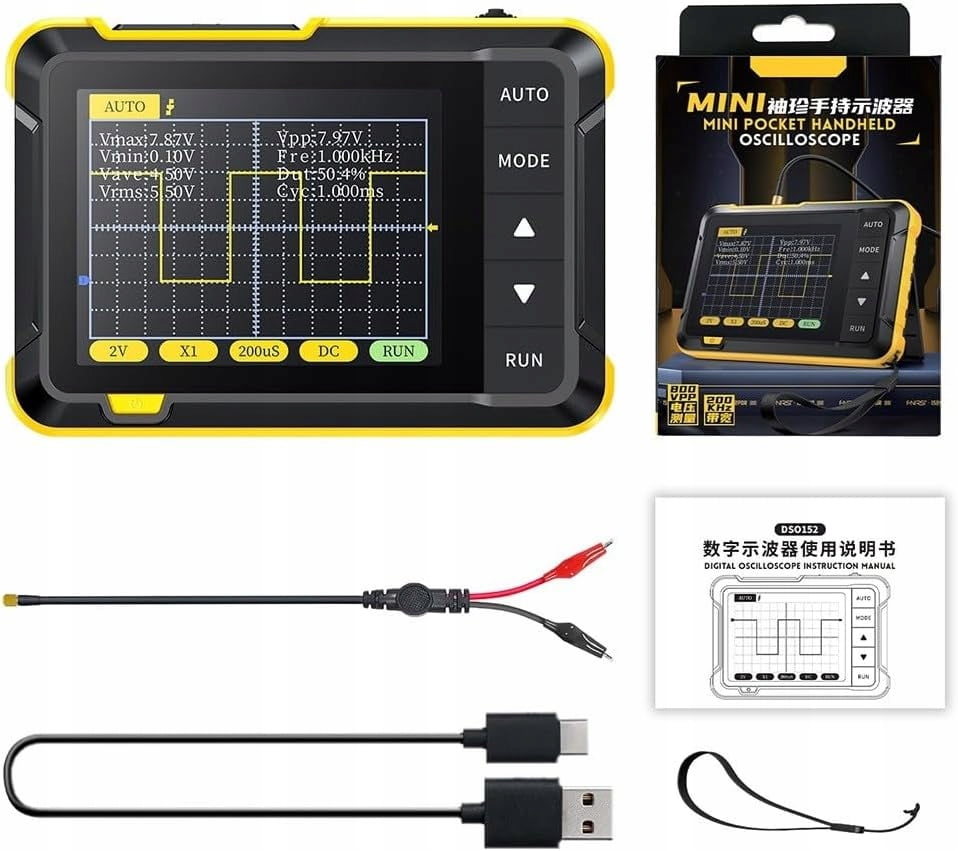

  ✅Kit Contents: FNIRSI DSO152 Oscilloscope Measurement Cable P6100 Probe , P6100 Probe Adapter , USB Cable
