FPGA Development Board ICESugar RISC-V Architecture ICE40UP5k Open Source USB-C Interface for IoT/Edge AI Projects

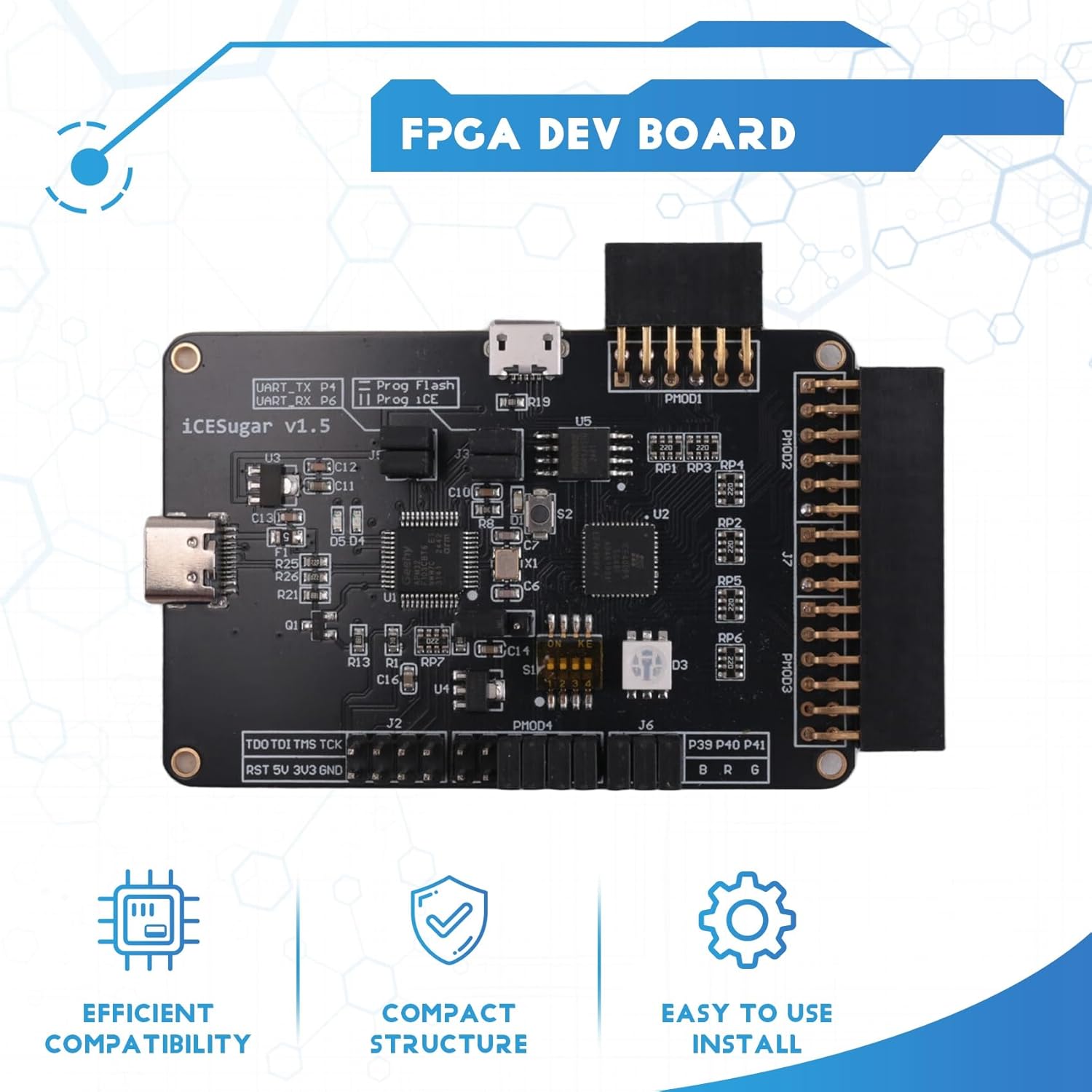

Yaregelun iCESugar is a open source FPGA development board based on Lattice iCE40UP5k.Though it's small and exquisite, it contains rich peripheral resources on board including RGB LED,Switch,TYPE-C-USB, Micro-USB.Most of the IO are led out by standard PMOD connector and can connect with other PMOD device.Also, it has a on-board debugger called iCELink which is based on ARM Mbed DAPLink. You can just drag the FPGA bitstream into the virtual disk to program with a big convenience, since the iCELink supports drag-and-drop programming, USB CDC serial port and JTAG.Built-in 8MB SPI-Flash and support DUAL/QUAD SPI& QPIColor: BlackMaterial: PCBPackage Contents:1 x iCESugar FPGA Development Board1 x TPYE-C CableOnly the above package content, other products are not included.Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

• Lead out all the IO with standard PMOD connector and can connect with other PMOD devices
• Features
• iCE40UP5k main chip, 5280 LUT/128KB SPRAM/PLL/ SPI///PWM
• On-board iCELink debugger, supporting drag-and-drop programming, USB CDC serial port and JTAG
• Totally use open source tool chain to develop
