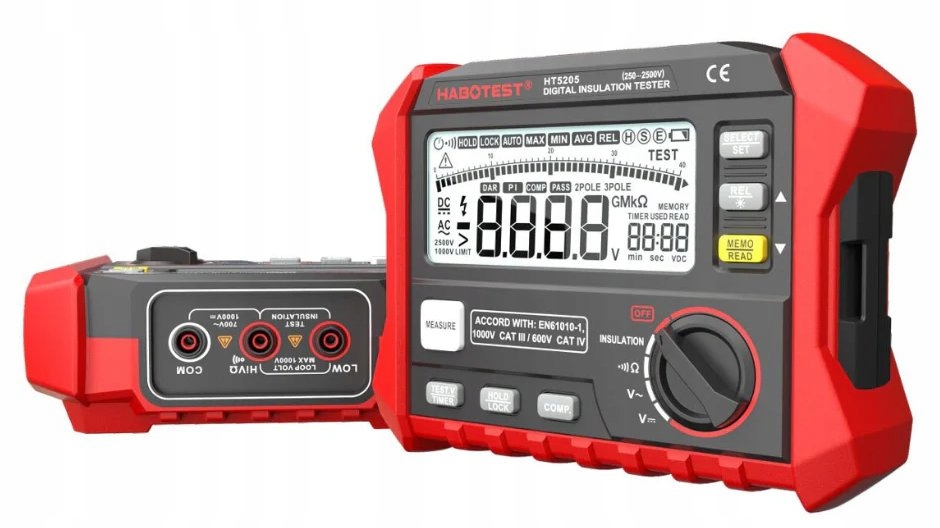

HT5205 Insulation Resistance Tester Digital Megaohm Meter High Voltage Electrical Insulation Resistance Meter

HT5205 Insulation Resistance Tester Digital Megaohm Meter High Voltage Electrical Insulation Resistance Meter

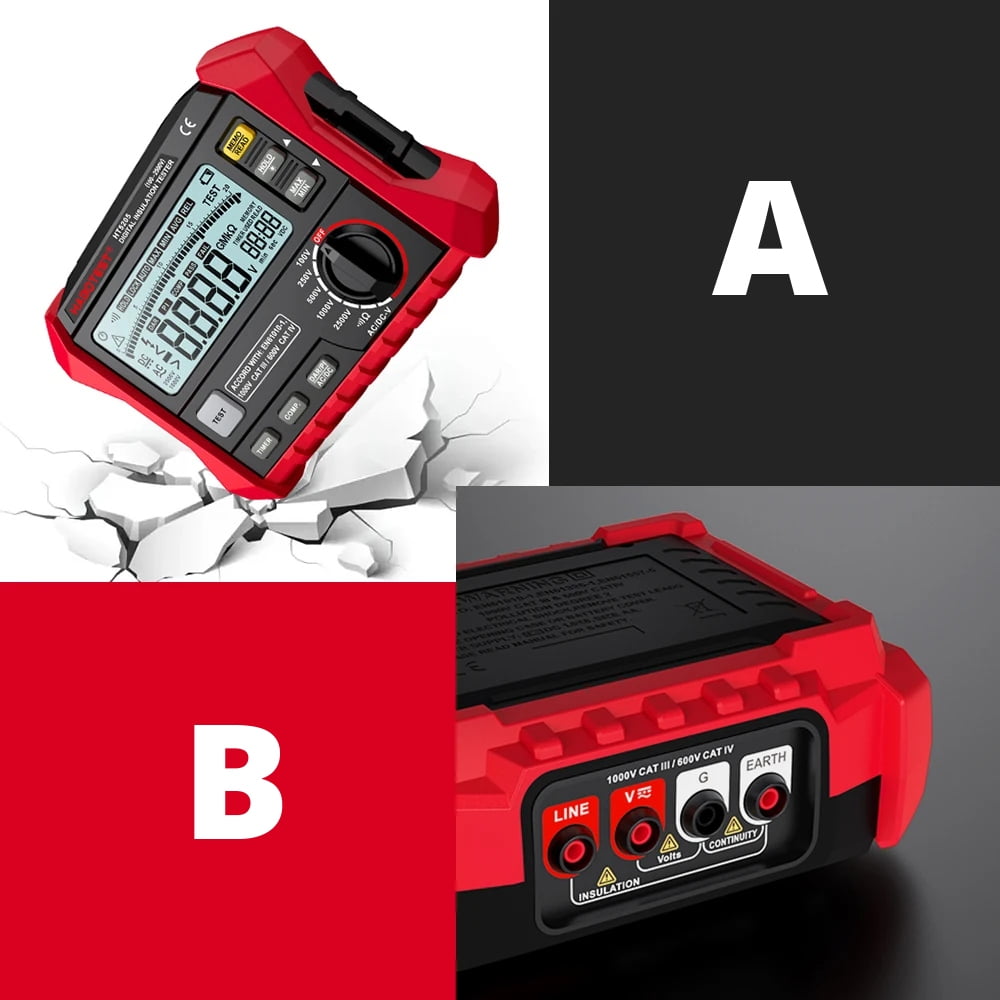

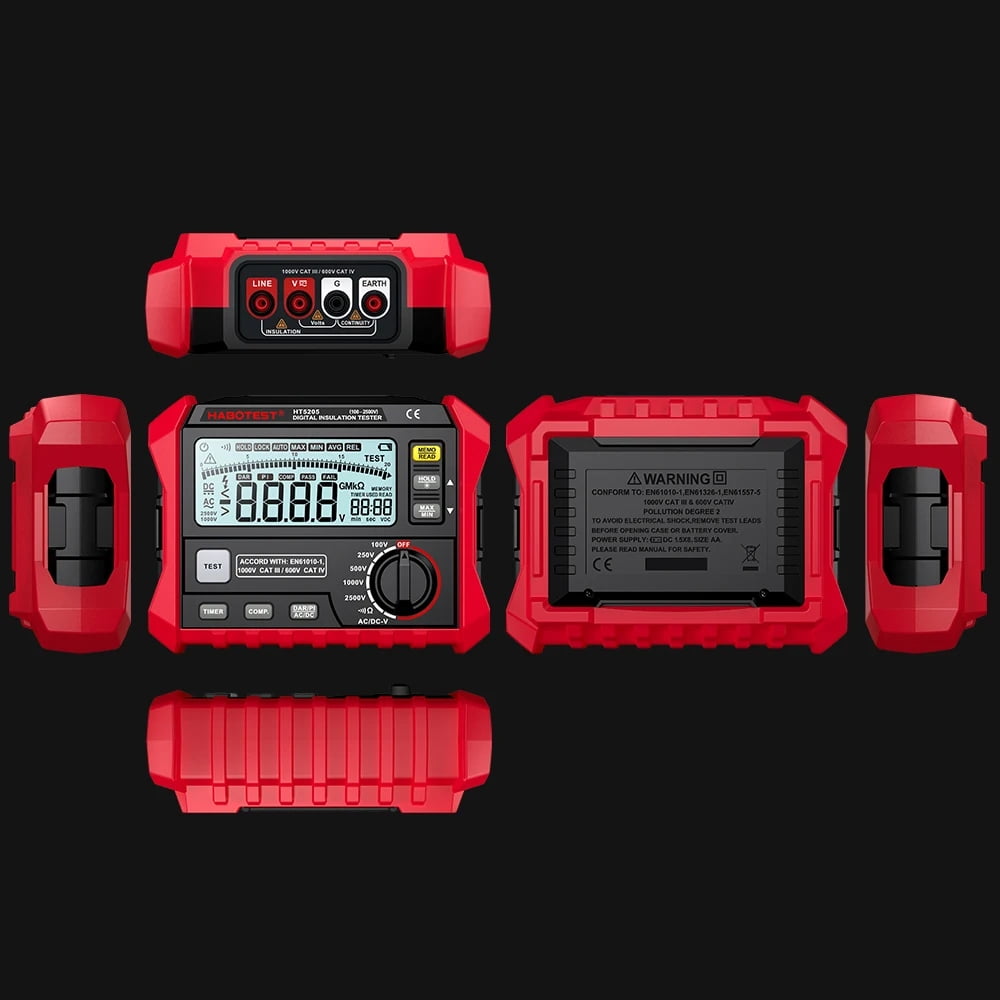

• ✅ High Voltage Isolation Resistance Meter HT5205 ⭐⭐⭐⭐⭐ Insulation tester for performing high voltage tests. The test is performed between circuit components and insulating components, such as: wire insulation, equipment shielding or body, power tools, housings, distribution boxes, etc. The purpose is to exclude equipment and sensitive components that may cause insulation weakening and electric shock directly or after a period of operation. ✅ Rugged Construction and Performance A. Durable and shock-resistant housing. The meter is equipped with a protective housing that is tightly adhered with grooves and effective shock-absorbing rubber materials, ensuring equipment protection, preventing damage and ensuring safer measurements. The silicone sleeve has excellent heat and cold resistance. B. Measurement line input connector The measurement cable can be easily and safely connected to the appropriate connector, and it also indicates the maximum limit.

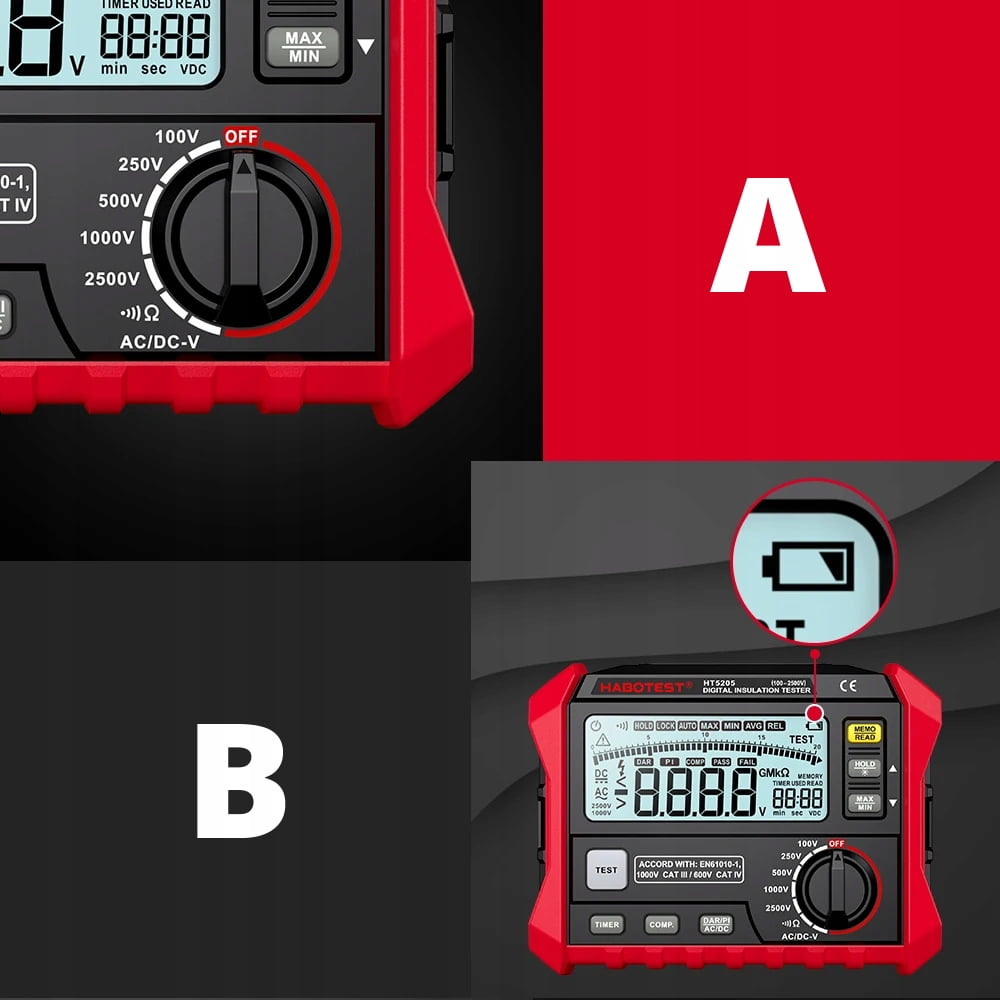

  ✅ Features A. Function knob. Allows you to set multiple ranges, thereby measuring according to specific requirements. B. Low battery indicator and LCD display. The appearance of a discharged battery symbol indicates low battery. To avoid incorrect readings and potential electrical hazards or personal injury, please replace the battery immediately, and with this feature you can ensure that the meter is working properly. Large display and font make reading data convenient and more intuitive.

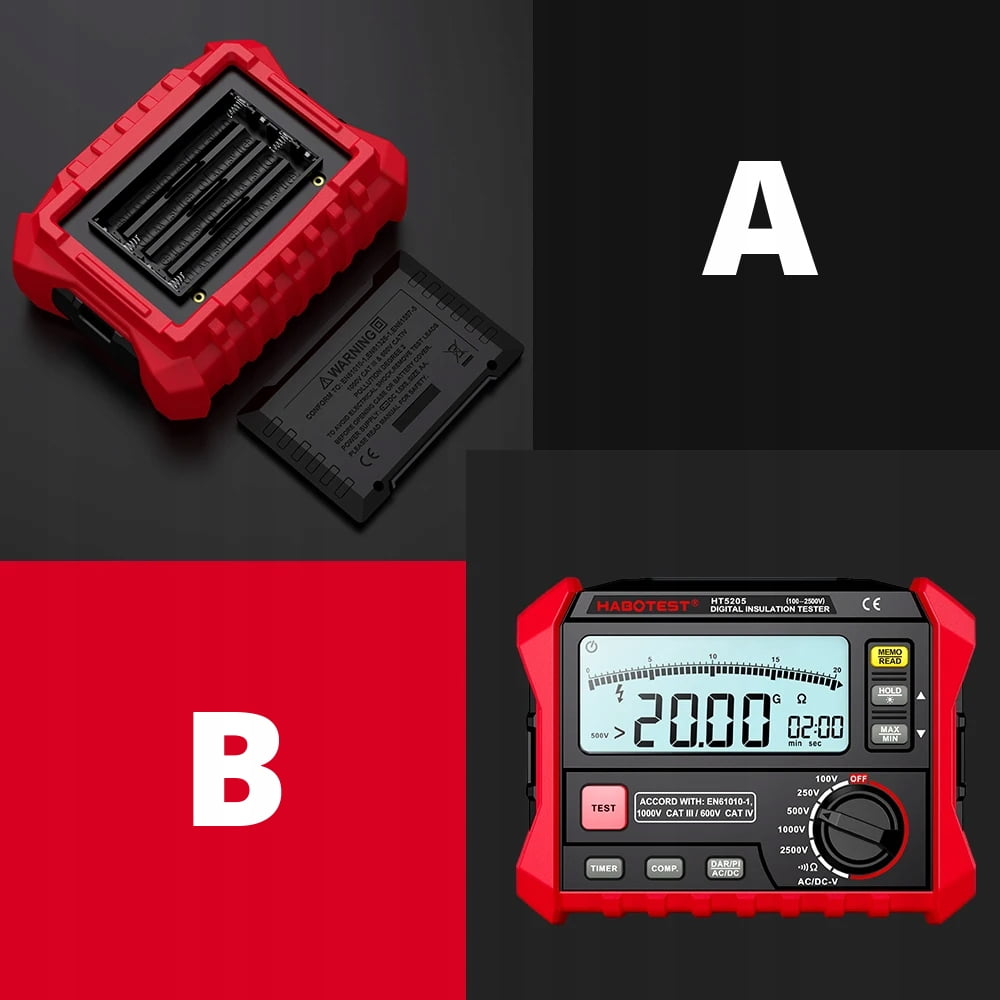

  ✅ A. Power supply 8 1.5V AA batteries (batteries included). The meter is equipped with an automatic shutdown function after idle time to save battery voltage.
  ✅ B. Temporary measurement of insulation resistance. When the timing function is activated, press the measurement button to make the instrument perform insulation test. When the set time is reached, the insulation test will stop automatically.

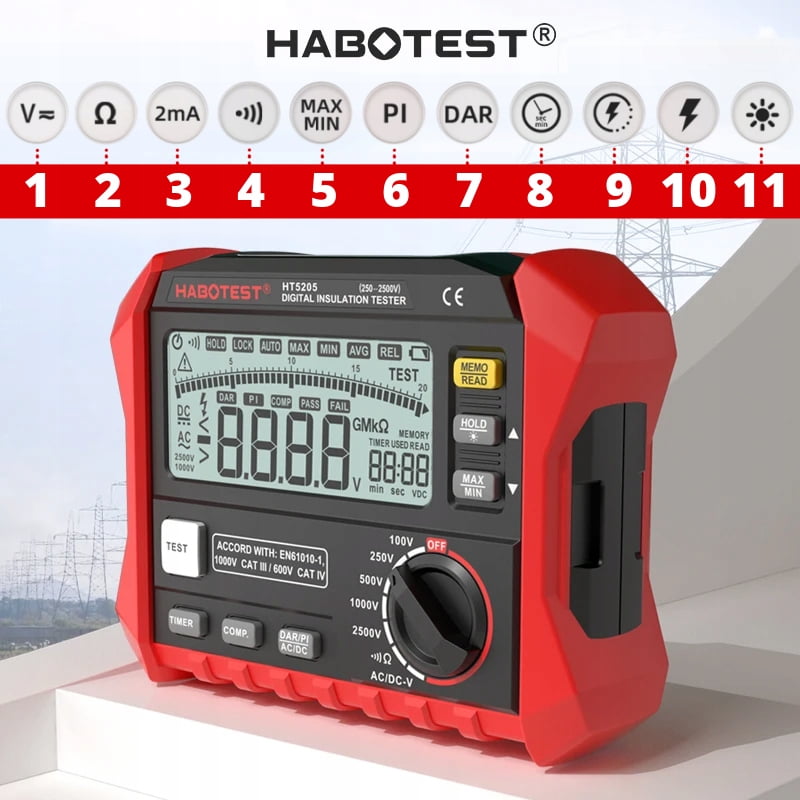

• ✅ Main measurement functions:
  1. Measure AC/DC voltage.
  2. Measure resistance.
  3. Voltage measurement.
  4. Continuity measurement.
  5. Maximum/minimum value.
  6. Polarity indication.
  7. Dielectric absorption coefficient.
  8. Insulation resistance time measurement function.
  9. Automatic discharge function.
  10. Voltage detector function.
  11. Highlight function.

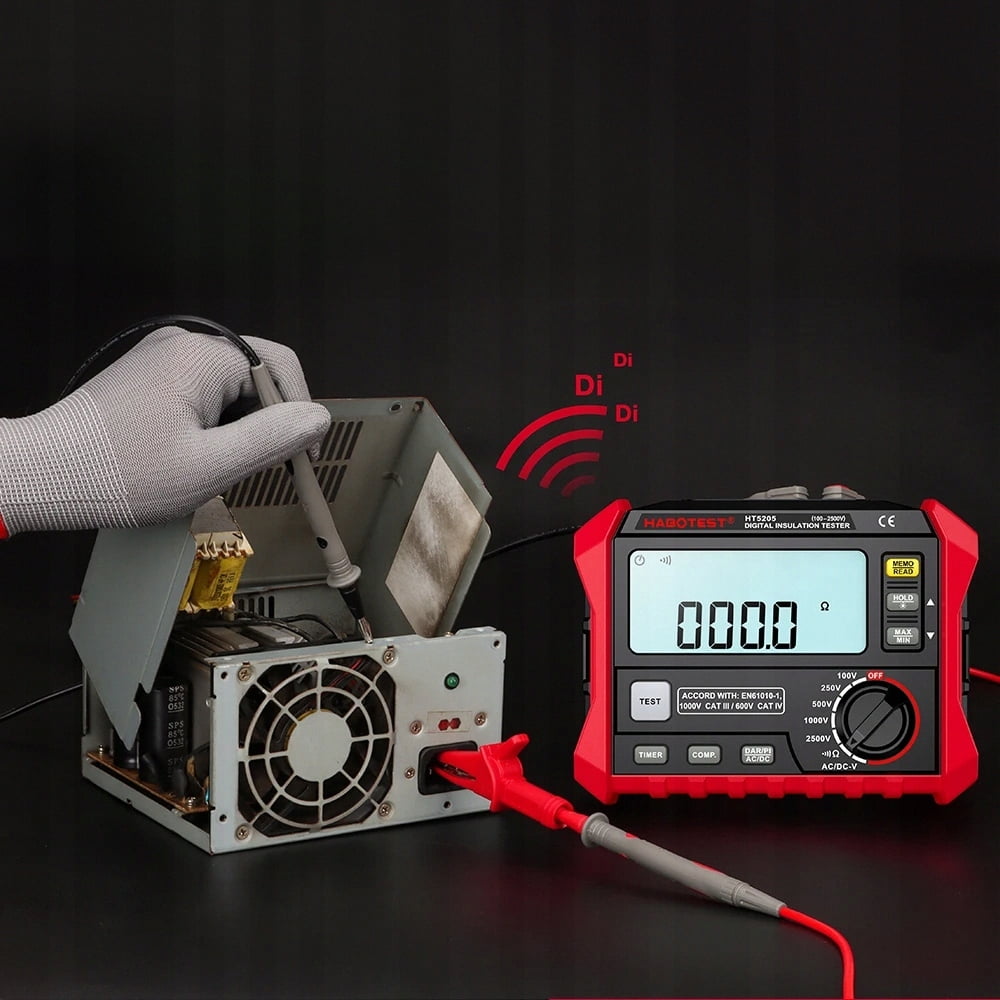

  ✅ The meter is also equipped with an audible alarm after exceeding the set threshold.
  ✅ Application examples:
  1. Test transformer.
  2. Test cable.
  3. Engine test.
  4. Electrical equipment testing.

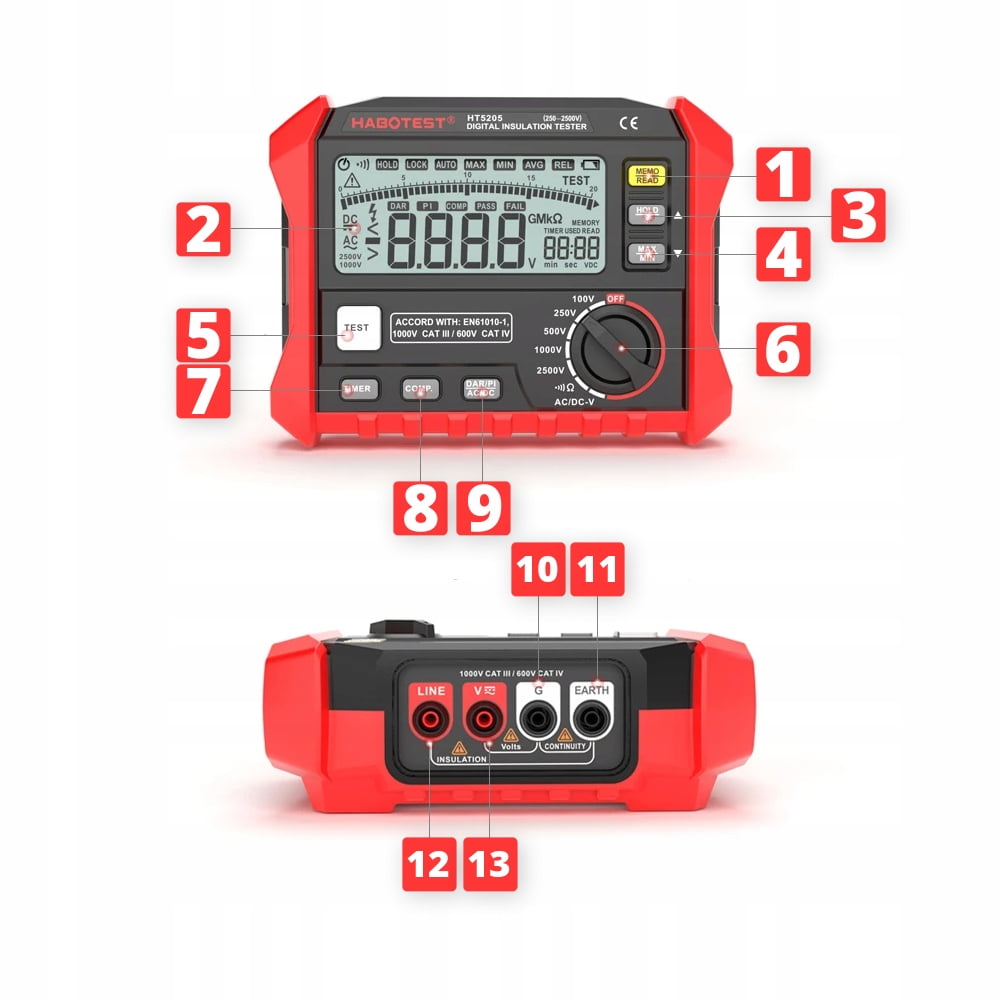

• ✅ Equipment component description:
  1. Data storage/reading.
  2. Display.
  3. Data hold/backlight.
  4. Maximum/minimum value.
  5. Insulation resistance measurement button.
  6. Power on/off knob/function switch.
  7. Timer function button.
  8. Insulation resistance comparison function button.
  9. Switch conversion/absorption coefficient/polarity index/AC/DC voltage switch button.
  10. Negative input socket for measuring voltage AC/DC/input socket for measuring continuity at position Ω.
  11. Negative input socket for measuring insulation resistance/input socket for measuring continuity at position Ω.
  12. Positive input socket for measuring insulation resistance.
  13. Positive input socket for measuring AC/DC voltage.

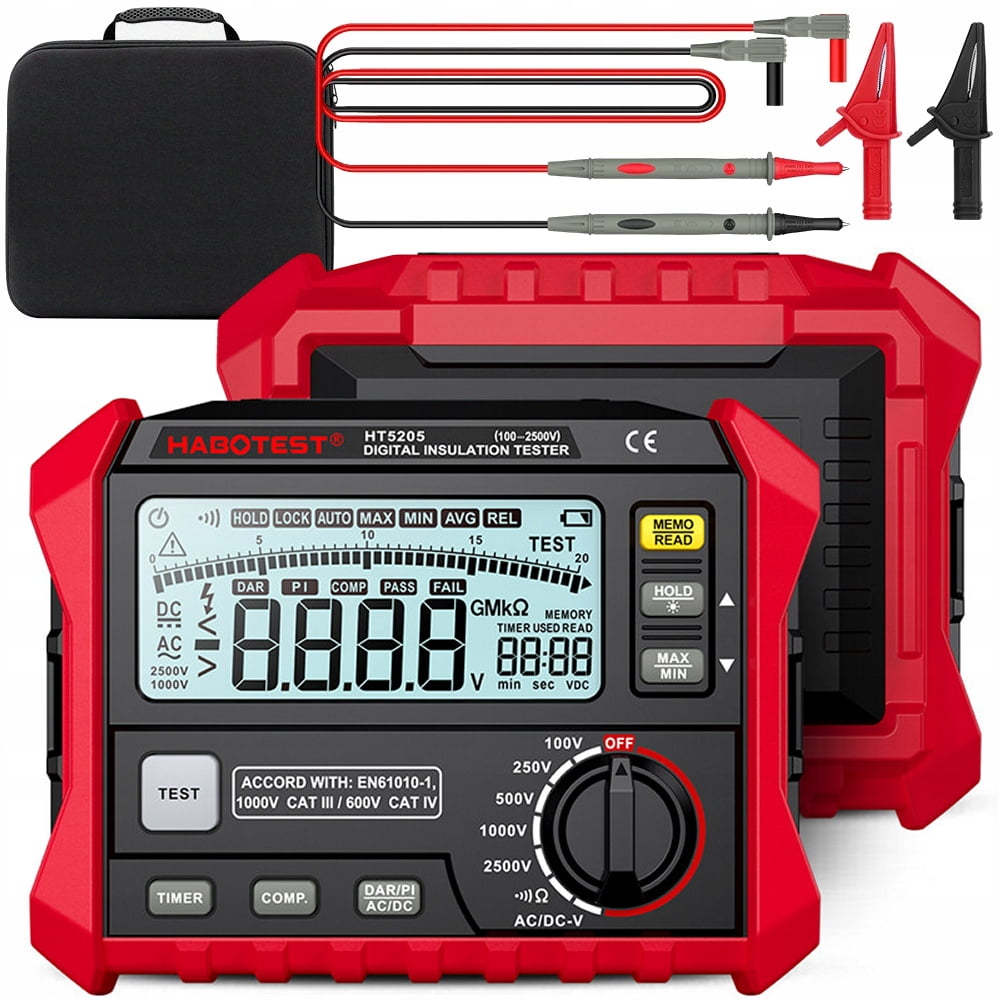

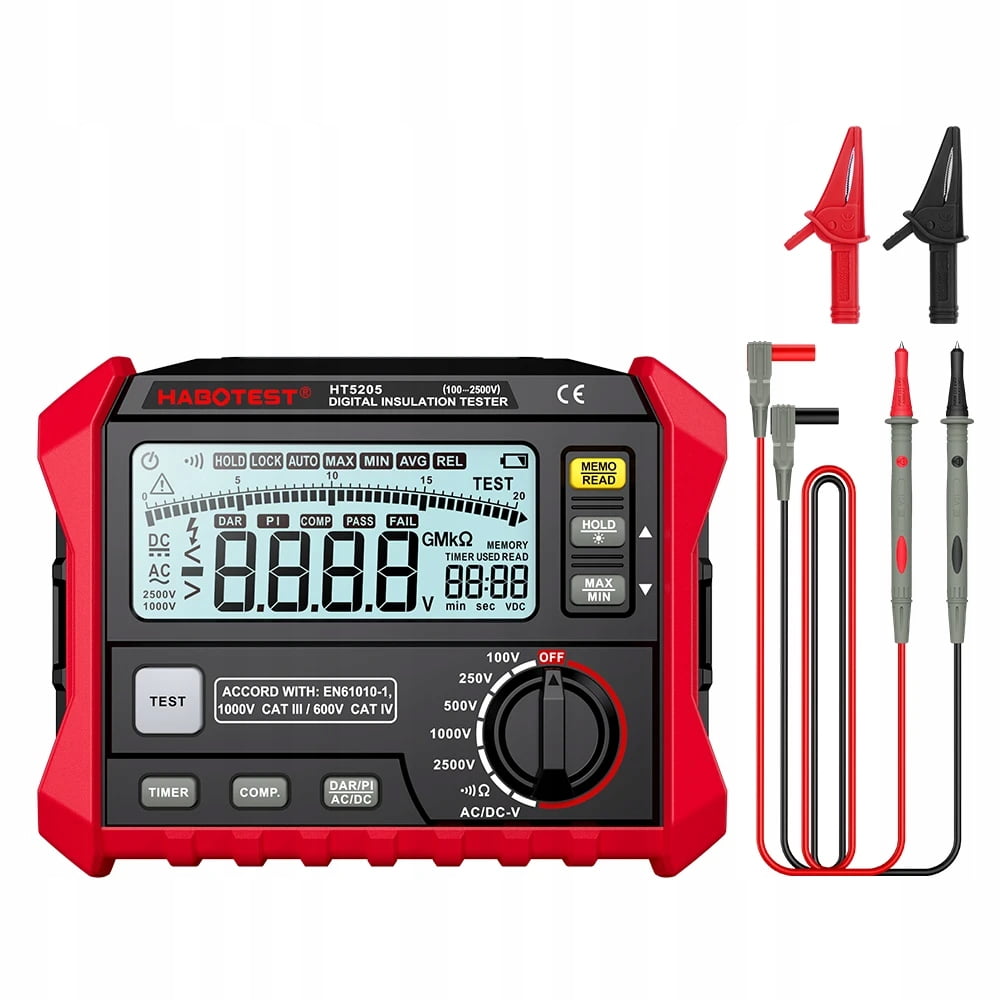

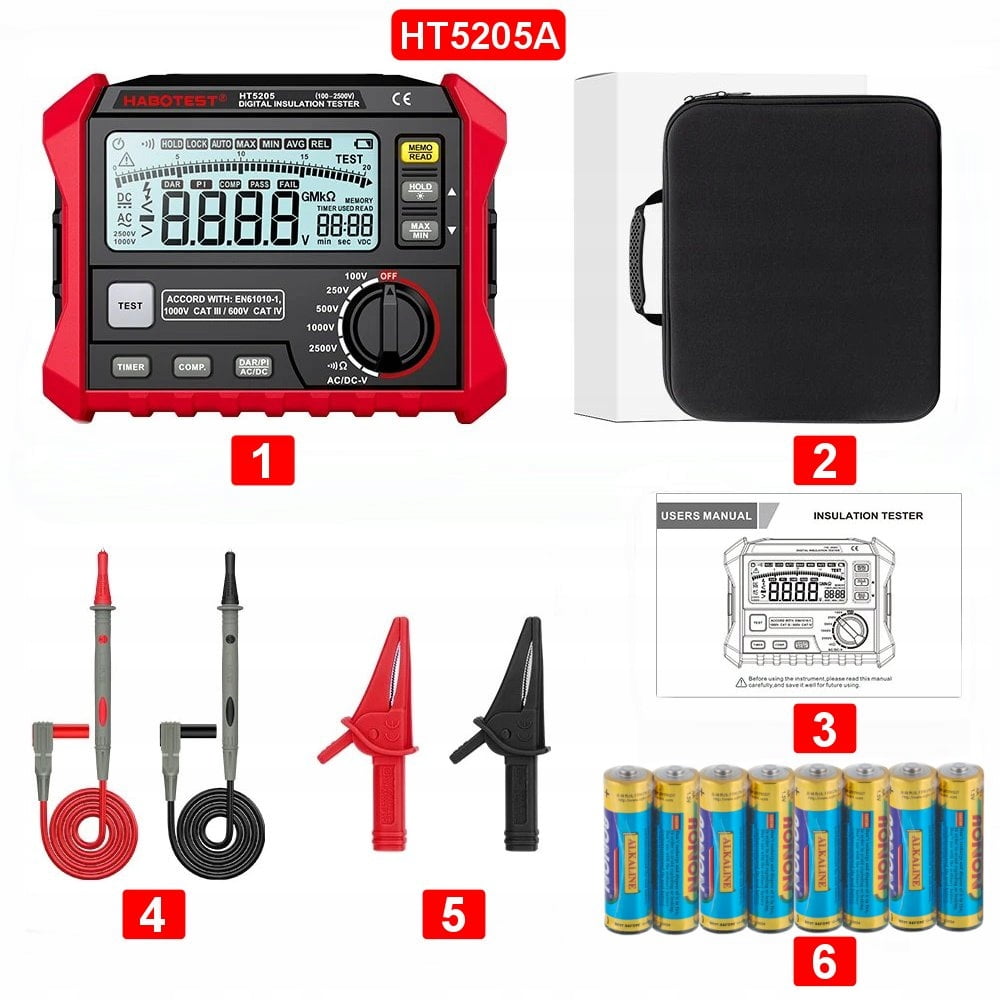

• ✅ Package contents:
  1. Habotest GT5205 insulation tester.
  2. Protective box for storage.
  3. English user manual!
  4. 2 x test leads.
  5. 2 x alligator clips
  6. 8 x AA batteries
