RS232 Serial Port Printing Module of 58mm Thermal Receipt Printer Supports microcontroller Android Linux Secondary Development USB Embedded Serial Port Printer with Paper Cutting Function

RS232 serial port printing module of 58mm thermal receipt printer supports microcontroller Android Linux secondary development USB embedded serial port printer. This printer supports a wide voltage between 12 ~ 24V, but the maximum voltage cannot exceed 24V. Otherwise, it will burn out the motherboard, which will make it unusable. It is recommended to use 3A for current; Thermal receipt printer provides three physical interfaces, namely RS232+TTL+USB. Can let you choose different interfaces better, and effectively avoid the confusion caused by the lack of upper computer interfaces; The printer has the function of automatic paper cutting, which supports full cutting or half cutting.This thermal receipt printer can print clearly, and the paper bin can accommodate the thermal receipt paper roll with a diameter of 50MM, which can be easily embedded into the detection instrument to realize the function of data printing. The printer can be connected to platforms such as Arduino, MCU, Android, Linux and Windows, and Android provides a secondary development kit. You can easily print text, pictures, barcodes, QR codes, etc.Product packing list: Thermal receipt printer *1 set; Power cord * 1; RS232/TTL serial port line * 1; USB line * 1; Thermal ticket paper roll * 1; (Specification 57*40)In order to help you realize the development easily, we have written a common example of instruction set printing according to customers' common instructions. After submitting the order, we will send you print samples and development materials by email. You can change what you need to print according to our example. Super convenient!

• 58mm embedded thermal receipt printer with automatic paper cutting has excellent performance, clear printing and beautiful structure, and is widely used in medical instruments, testing instruments and self-service vending machines. Provide CAD or 3D drawings. It works perfectly with your device, making printing easier than ever. It is easy to be embedded in any type of printing instrument.
• This thermal receipt printer can be connected to Arduino, MCU, Android, Linux, Windows and other platforms, and Android provides a secondary development kit. You can easily print text, pictures, barcodes, QR codes, etc. Provide ESC/POS printing instruction set and development materials.

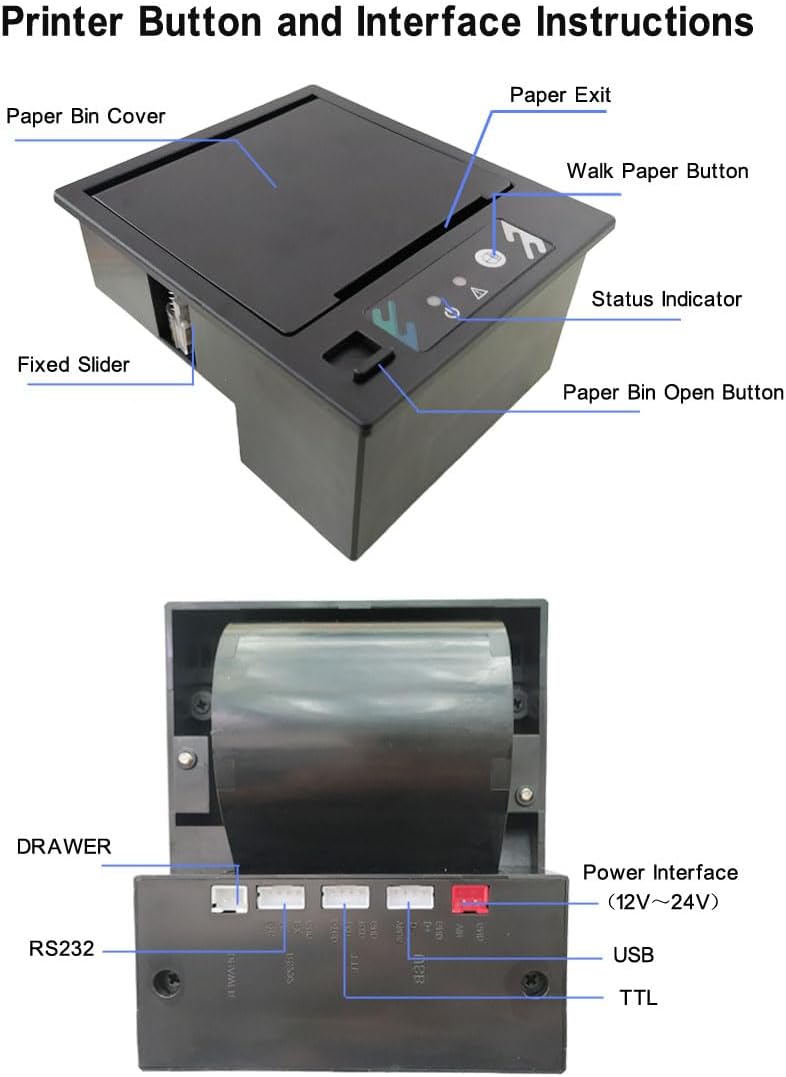

• The printer supports a wide voltage range of 12V to 24V, and the maximum voltage cannot exceed 24V. It is recommended to use 3A for current; The receipt printer provides three physical interfaces, namely RS232+TTL+USB. Can effectively avoid confusion due to insufficient interface of the upper computer;
• Product size: 102 * 117* 63 mm / 4 * 4.6 * 2.48 inches; Packing list: 1 * printer; 1 * USB Cable;1 * Serial Port Cable; 1 * Power Cord;1 * Thermal Paper;
• The printer supports printing barcode, QR code, text, pictures and other information, and supports secondary development. The printer has the function of automatic paper cutting, and supports full cutting or half cutting. We have compiled an example of instruction set printing according to the common instructions of customers. Due to the limited space, please feel free to contact us for more information.

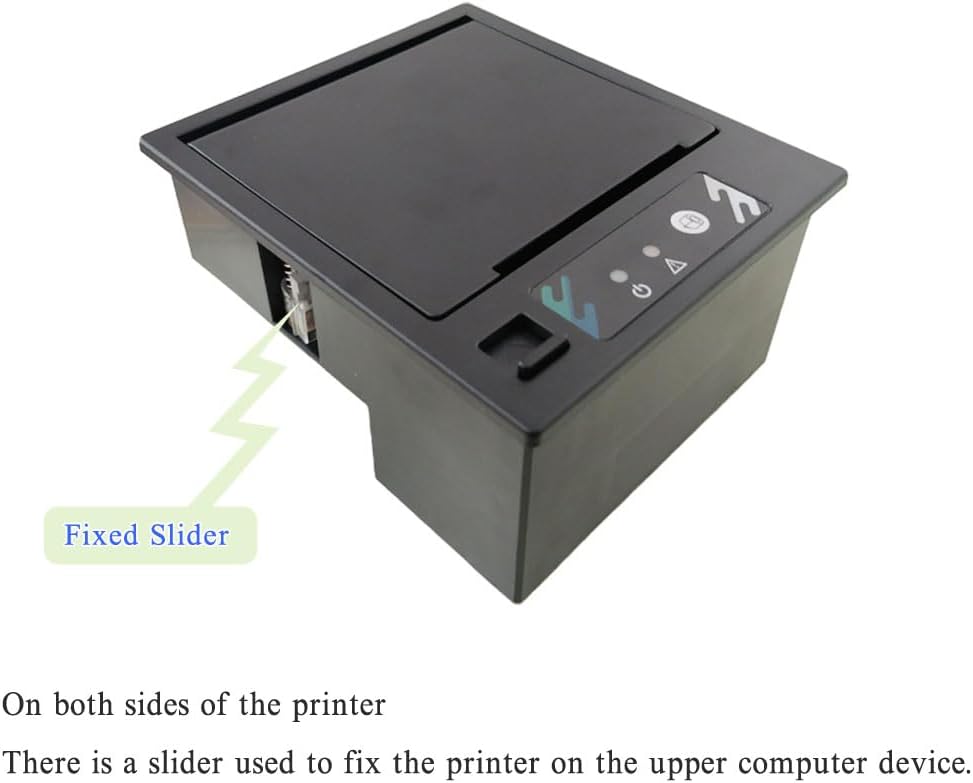

• Open the paper bin cover on the front panel to change the paper, which is simple and convenient to operate. The structure is beautiful. There are fixed sliders on both sides of the printer. By screwing the screws on both sides in the paper bin, the slider can be moved up and down to fix the printer on the upper computer equipment.
