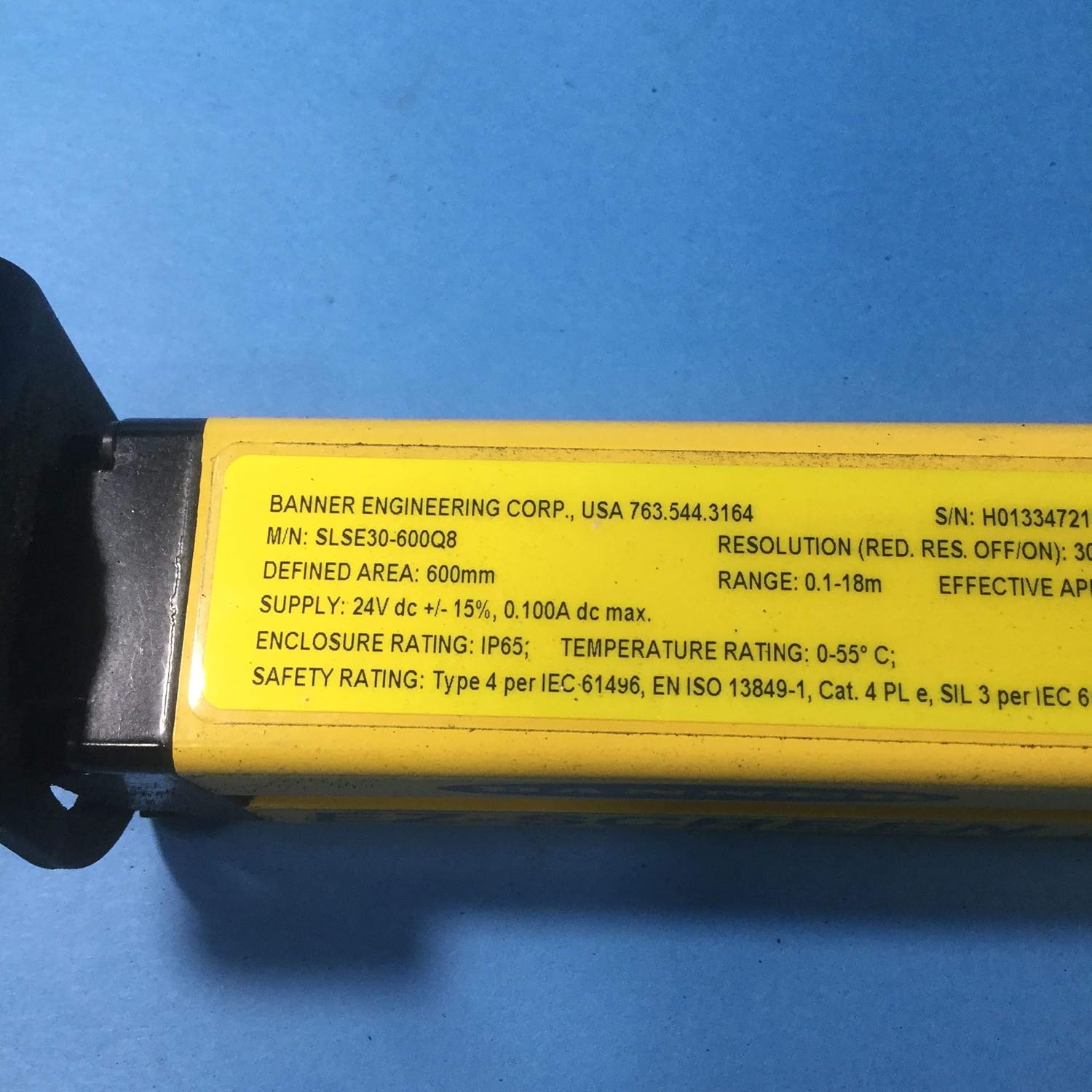

SLSE30-600Q8 EZ-Screen Emitter

The Banner Engineering SLSE30-600Q8 is an emitter component of an EZ-SCREEN Safety Light Curtain System. These systems are designed to provide point-of-operation safeguarding for personnel working near hazardous machinery. Here are 5 key bullet points describing this product: Safety Light Curtain Emitter: This is the emitter unit for a safety light curtain, which projects an array of infrared light beams to create a protective sensing field. It must be paired with a corresponding receiver (e.g., SLSR30-600Q8) to form a complete safety system. 30 mm Resolution (Hand Detection): Designed with a 30 mm resolution, meaning it can detect objects (like a hand) of 30 mm diameter or larger interrupting the light screen, ensuring personnel safety. 600 mm Defined Area Height: Provides a 600 mm (23.6 inches) defined area height, meaning the light curtain spans this height to protect an access opening or area of a machine. Wide Operating Range: Capable of operating over a significant range, typically from 0.1 meters (4 inches) up to 18 meters (60 feet), offering flexibility for various machinery sizes and layouts. Rugged Design & Easy Connection: Features a durable aluminum housing with metal end caps for robust performance in industrial environments (IP65 rated) and uses an 8-pin M12 quick-disconnect connector for straightforward installation.
