VEVOR Underhoist Support Stand, 3/4 Ton Capacity Under Hoist Jack Stand, Lifting from 38.4 to 75.4 in, Bearing Mounted Spin Handle, Self-Locking Threaded Screw, Two Wheels, Support Vehicle Components

<div> <h3><strong>Prodcut Description</strong></h3> <div><strong>Triangular Base Under Hoist Jack Stand, Lifting for Car Maintenance Made Simpler</strong></div> <div> <div>The support capacity of the underhoist support stand is 3/4 ton/1653.5 lbs. The slender yet sturdy and durable support rod design provides the advantage of lightweight and easy operation at close range while being resistant to bending or deformation. It is a helpful tool for inspecting the underside of vehicles and performing professional exhaust repairs, shock absorber replacements, and other vehicle component maintenance tasks.</div> </div> </div> <div> <div> <div><strong>Excellent 3/4-Ton Support Capacity</strong></div> <div> <div>The robust 3/4-ton (1653.5 pounds) load-bearing capacity provides the strength and reliability needed for automotive lifting. Constructed using Q235B steel, this hoist stand is durable and resistant to deformation and bending. It's the ideal and dependable tool for lifting vehicles.</div> </div> </div> <div> <div><strong>Smooth Height Adjustment</strong></div> <div> <div>The jack stand locks into the primary height through the holes, and the rotation handle is equipped with thrust bearings, allowing for effortless and quick height adjustments even under heavy loads. Achieve simple and efficient lifting and lowering. Height adjustment range: 38.4" - 75.4".</div> </div> </div> <div> <div><strong>Top-Down Stability</strong></div> <div> <div>This under hoist stand uses a U-shaped tray with rubber padding to lift and support car contact points. The lifting is non-slip and less prone to shifting, minimizing the risk of scratching the chassis. The reinforced triangular base with two casters ensures both stability and ease of mobility.</div> </div> </div> <div> <div><strong>Self-Locking Feature</strong></div> <div> <div>Grasp the rubber handle with both hands and rotate the screw rod to securely lock the height. This hoist jack is designed to provide safety and convenience for those using support stands under the vehicle without the need for assistance from others or additional tools.</div> </div> </div> <div> <div><strong>Widely Used in Automotive Maintenance</strong></div> <div> <div>The car stand jack provides partial support for positioning vehicle components during the installation and removal processes. It serves as a valuable tool for inspecting the underside of automobiles and conducting specialized exhaust repairs, often used with floor jacks and automotive lifts.</div> </div> </div> <div> <div><strong>Lightweight Design</strong></div> <div> <div>This triangular base car lift safety stand has a lightweight construction, weighing only 25.4 lbs / 11.5 kg. With the added wheels, moving it requires minimal effort, making storage even more convenient.</div> </div> </div> </div> <div> <h3><strong>Specifications</strong></h3> <div>Item Model Number: US076</div><div>Weight Capacity: 1653.5 lbs / 0.75 t</div><div>Maximum Height: 75.4" / 1915 mm</div><div>Minimum Height: 38.4" / 975 mm</div><div>Main Material: Q235B</div><div>Lead Screw Length: 11.8" / 300 mm</div><div>Handle Length: 14.2" / 360 mm</div><div>Product Weight: 25.4 lbs / 11.5 kg</div><div>Product Dimensions: 18.3" x 18.1" x 38.4" / 466 x 460 x 975 mm </div> <div> <h3><strong>Package Content</strong></h3> <div>1 x Underhoist Support Stand</div><div>1 x 51106 Bearing</div><div>8 x M10×15 Hex Bolt</div><div>10 x M10 Anti-loosening Nut</div><div>2 x M10×55 Bolt</div><div>1 x M8×16 Hex Bolt</div><div>2 x M8×20 Hex Bolt</div><div>2 x M8 Anti-loosening Nut</div><div>2 x 3-inch Nylon Wheels</div><div>1 x 12×80 mm Pin (with Chain)</div><div>1 x Bearing Seat</div><div>1 x User Manual </div></div></div>

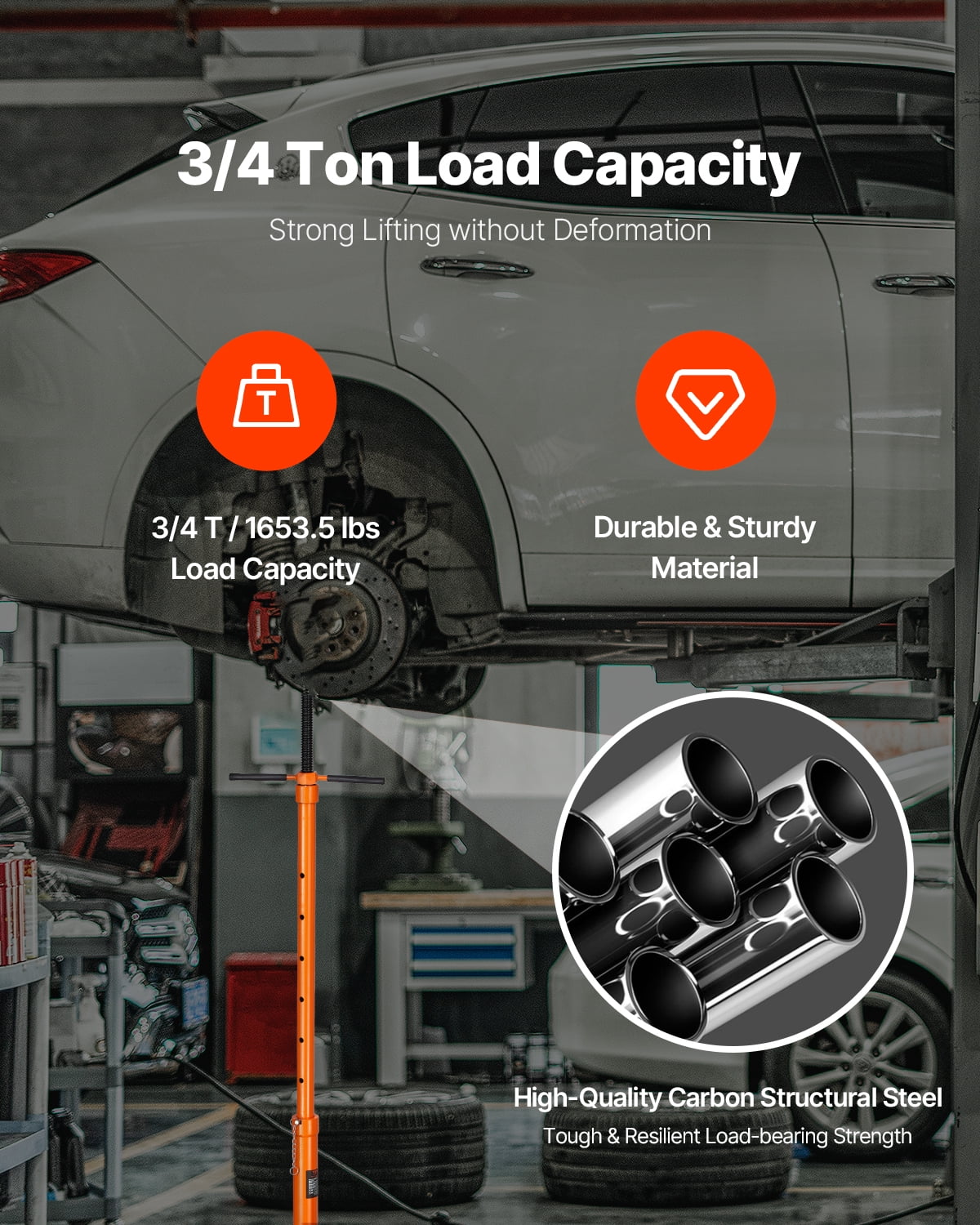

• 1653.5 lbs Impressive Load Capacity: This underhoist support stand equipped with wheels is lightweight at only 25.4 lbs / 11.5 kg but can support a remarkable 1653.5 lbs / 0.75 t. The sturdy tubular steel frame helps prevent deformation or twisting. At least 2 stands are required for use and can support most small cars and similar vehicles.

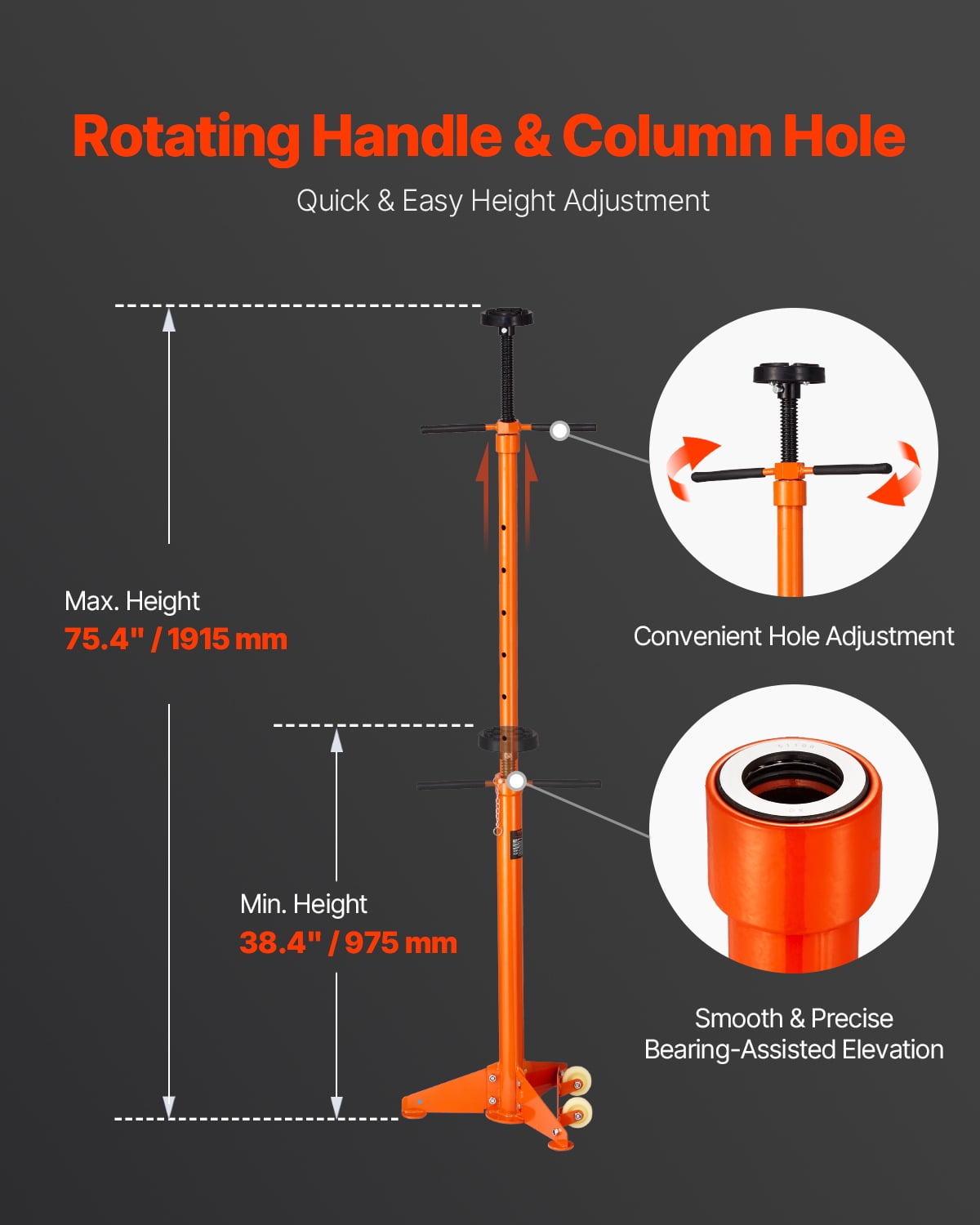

• Dual Quick Height Adjustment: The holes on the main post of the jack stand are used to lock in the primary height levels, and the threaded rod assists in adjusting the height. The spin handle incorporates a thrust bearing, making it easy to raise and lower, even under the extreme pressures of a heavy load. The height adjustment range is 38.4" - 75.4" / 975 - 1915 mm, catering to the bottom clearance requirements during most maintenance tasks.

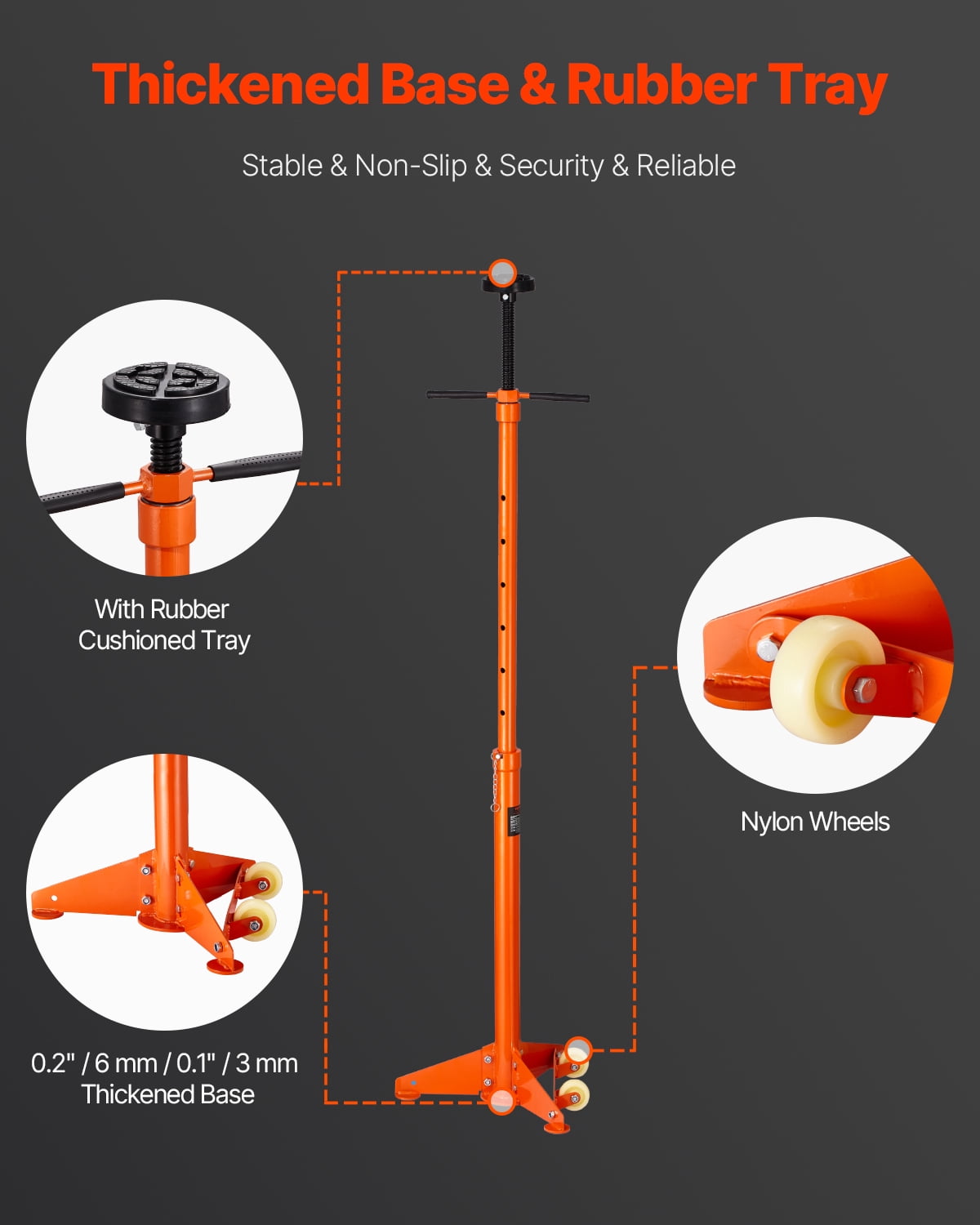

• Safety and Stability: A thickened 0.2" / 6 mm circular base and sturdy 0.1" / 3 mm triangular gussets enhance load stability, while the U-shaped tray with rubber padding provides secure, non-slip support without causing damage. This design of our hoist stand ensures a firm and stable hold, preventing the vehicle from wobbling.

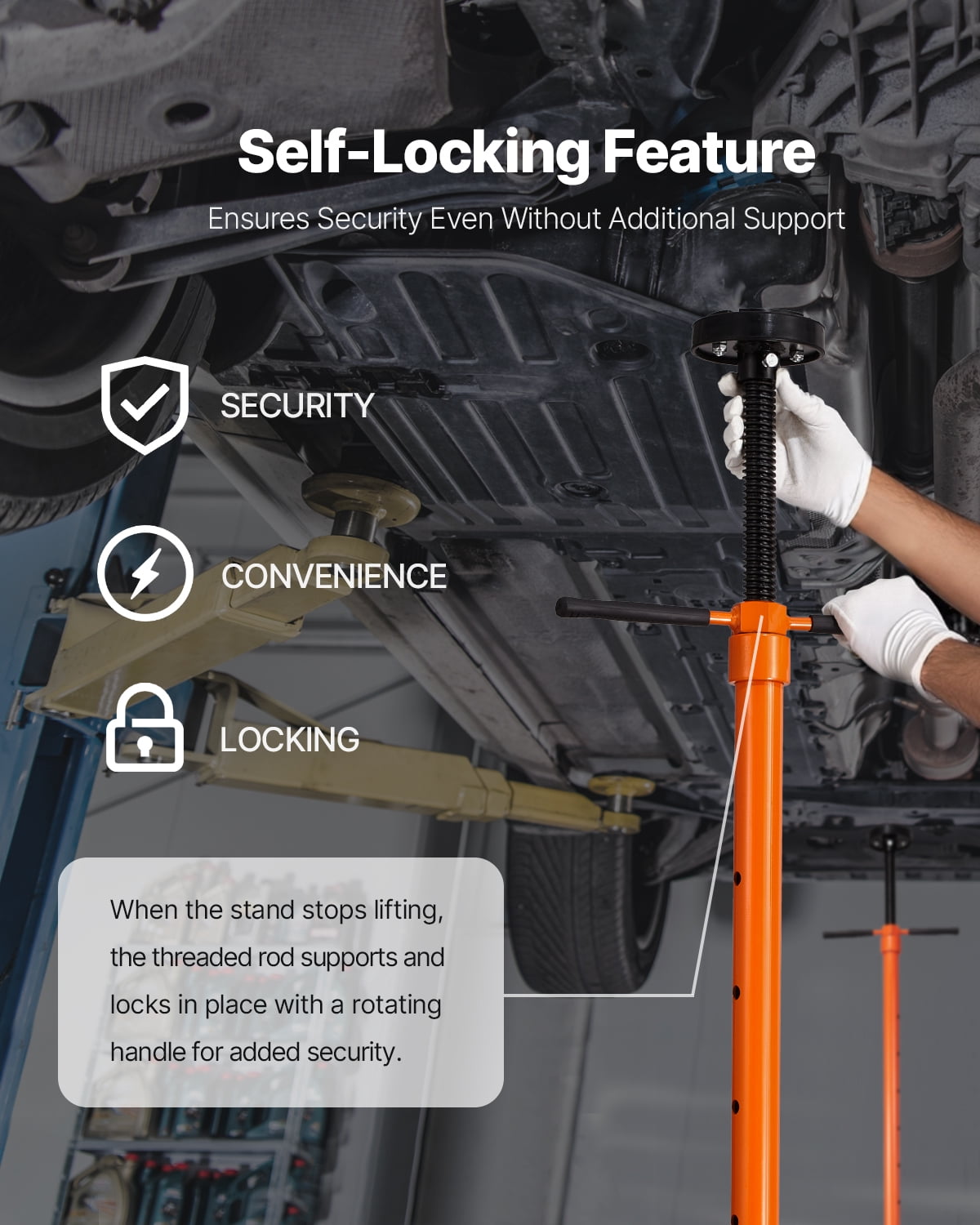

• Self-Locking Feature for Easy Operation: The threaded screw rod provides a self-locking function to prevent the stand from lowering without assistance. Adjusting the under hoist jack stand under the vehicle is also very secure. The rubber handle provides a comfortable grip.
• Versatile Applications: The screw jack provides partial support for positioning vehicle components during installation and removal processes. It provides technicians with added height assistance when working on components such as transmissions, CV joints, radiators, drive shafts, exhaust systems, and catalytic converters, among others.
